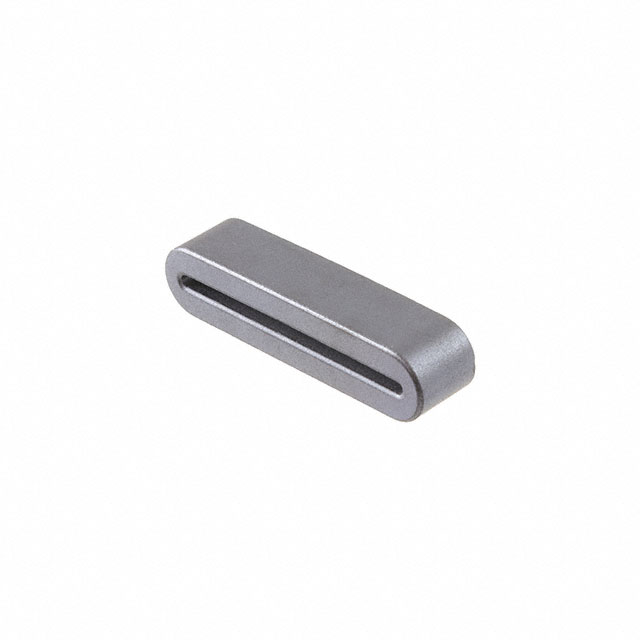

ESD-FPL-35-8

$1.27

Description：FERRITE CORE SOLID 30 X 1.3MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:ab13989aacfa Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 30 X 1.3MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.181" W x 0.051" H (30.00mm x 1.30mm)
Outer Dimension：1.378" W x 0.315" H (35.00mm x 8.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.315" (8.00mm)

Download product information

ESD-FPL-35-8

Overview

The KEMET ESD-FPL-35-8 is a solid ferrite cable core designed for flat cables. It utilizes Nickel Zinc (Ni-Zn) material and operates up to +85°C. The component measures 30mm in length with a 1.3mm thickness, providing electromagnetic interference suppression at frequencies around 300 MHz.

Feature Summary

Solid Nickel Zinc construction optimized for flat cable applications
Bare finish design allows direct integration into cable assemblies
Engineered for high-frequency electromagnetic interference suppression

Applications

Electromagnetic interference suppression on flat ribbon cables
Signal integrity enhancement in data transmission lines
Common mode noise reduction in electronic interconnects

Procurement Notes

Verify the specific Nickel Zinc formulation matches the target frequency range of 300 MHz. Confirm that the bare core dimensions align with the flat cable geometry. Ensure the operating temperature rating of +85°C meets the environmental requirements of the final assembly.

Selection Notes

Select this component when flat cable geometry requires integrated ferrite suppression without additional housing. The Nickel Zinc composition offers suitable permeability for the intended frequency spectrum. Verify compatibility with the cable's physical profile before integration.

Part Context

This part belongs to the KEMET ESD-FPL series of solid ferrite cores. These components are specifically engineered for flat cable applications, offering a compact solution for noise suppression. The series provides various Nickel Zinc options to suit different frequency and size requirements.

Replacement Considerations

Substitute only with other KEMET ESD-FPL series parts or equivalent Nickel Zinc flat cable cores. Ensure identical dimensions (30mm x 1.3mm) and temperature ratings (+85°C). Verify frequency performance characteristics match the original specification.
