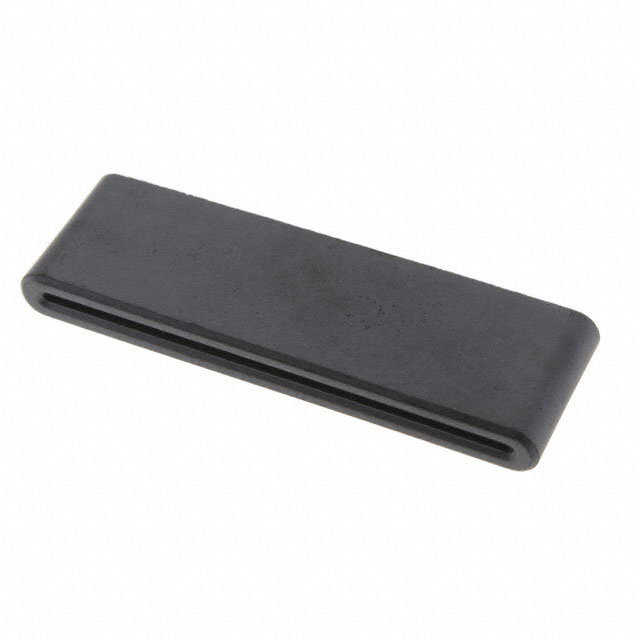

ESD-FPL-38.5-12

$1.39

Description：FERRITE CORE SOLID 35 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:da9569a86b9f Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 35 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.378" W x 0.031" H (35.00mm x 0.80mm)
Outer Dimension：1.516" W x 0.157" H (38.50mm x 4.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-FPL-38.5-12

Overview

The KEMET ESD-FPL-38.5-12 is a solid core ferrite cable component designed for flat ribbon cables. It features Nickel Zinc (Ni-Zn) material with dimensions of 35mm length, 0.8mm internal height, and 12mm width. The component supports up to 38 wires and operates at frequencies up to 300MHz. It complies with RoHS standards.

Feature Summary

Solid core design specifically engineered for flat ribbon cables
Constructed from Nickel Zinc (Ni-Zn) ferrite material
Bare finish configuration for direct integration

Applications

Flat ribbon cable suppression
Consumer electronics EMI filtering
Signal integrity enhancement in data buses

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current production status. Ensure compatibility with target flat cable thickness and wire count requirements before procurement. Check for any end-of-life notices or alternative recommendations from the supplier.

Selection Notes

Select this component based on the required internal height of 0.8mm to fit the specific flat cable profile. Confirm that the Nickel Zinc material properties align with the intended frequency range and impedance characteristics. Validate the maximum wire capacity against the cable assembly specifications.

Part Context

This component belongs to the KEMET ESD-FPL series of solid ferrite cores. These parts are manufactured for suppressing electromagnetic interference on flat cables commonly found in electronic assemblies. The series offers various dimensions to accommodate different cable geometries.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' flat cable cores without verifying dimensional and material specifications.
