ESD-FPL-38.5-8

$0.99

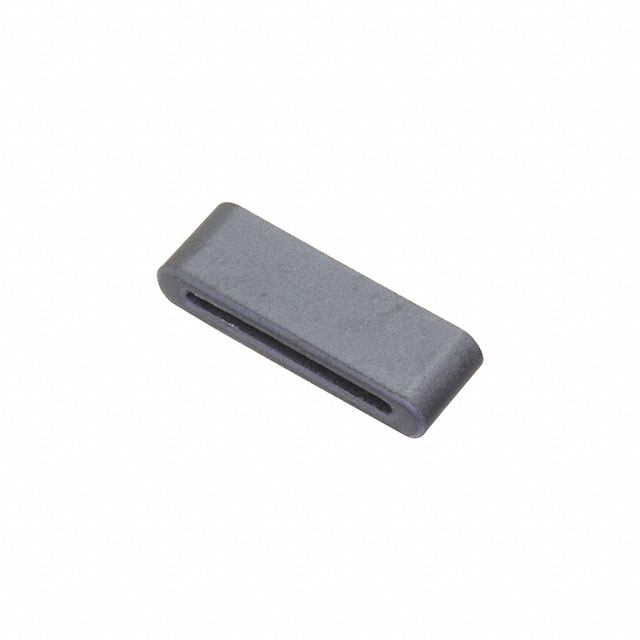

Description：FERRITE CORE SOLID 35 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:5bcb96863b5e Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 35 X 0.8MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.378" W x 0.031" H (35.00mm x 0.80mm)
Outer Dimension：1.516" W x 0.157" H (38.50mm x 4.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.315" (8.00mm)

Download product information

ESD-FPL-38.5-8

Overview

The KEMET ESD-FPL-38.5-8 is a bare nickel-zinc ferrite cable core designed for flat ribbon cables. It features dimensions of 35.0mm length by 0.8mm thickness. The component operates within a temperature range of -40°C to +85°C and supports frequencies up to 300 MHz. It is RoHS compliant and intended for electromagnetic interference suppression in electronic assemblies.

Feature Summary

Constructed from nickel-zinc ferrite material for effective high-frequency noise attenuation
Designed specifically for clamping onto bare flat ribbon cables
Provides compact form factor suitable for space-constrained consumer electronics

Applications

Electromagnetic interference suppression in consumer electronics
Noise filtering on flat ribbon cable interfaces
Signal integrity enhancement in data transmission lines

Procurement Notes

Verify the specific dimensional tolerance and material composition against the official KEMET datasheet before integration. Confirm that the operating temperature range meets the environmental requirements of the final assembly. Ensure compatibility with the target flat cable width and thickness specifications to guarantee proper mechanical fit and magnetic performance.

Selection Notes

Select this component when dealing with flat ribbon cables requiring high-frequency noise suppression. The nickel-zinc formulation offers distinct impedance characteristics compared to manganese-zinc alternatives. Consider the physical constraints of the application, as the thin profile suits tight spaces. Validate frequency response needs against the 300 MHz operational limit.

Part Context

This part belongs to the KEMET ESD-FPL series of ferrite cable cores. These components are engineered for easy installation onto existing cable harnesses without soldering. The series provides various sizes to accommodate different cable geometries while maintaining consistent electromagnetic interference mitigation capabilities across diverse electronic applications.
