ESD-FPL-45-12

$2.18

Description：FERRITE CORE SOLID 40 X 1.5MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:94bb00dd3cba Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 40 X 1.5MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：1.575" W x 0.059" H (40.00mm x 1.50mm)
Outer Dimension：1.780" W x 0.256" H (45.20mm x 6.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-FPL-45-12

Overview

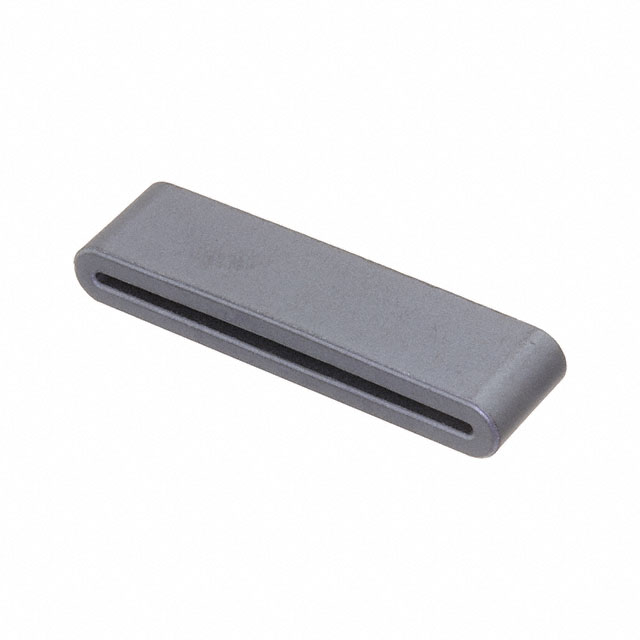

The KEMET ESD-FPL-45-12 is a solid ferrite cable core designed for flat ribbon cables. It features nickel-zinc material with an internal width of 1.5mm and an external length of 40mm. The component supports up to 20 wires and provides 100 ohms impedance at 100MHz, operating up to 300MHz. Dimensions include an external width of 12mm and height of 8mm. It complies with RoHS standards.

Feature Summary

Solid core construction for flat ribbon cables
Nickel-zinc ferrite material composition
High impedance performance at 100MHz
RoHS compliant manufacturing

Applications

Consumer electronics
Flat ribbon cable suppression
EMI filtering in electronic assemblies

Procurement Notes

Verify the specific part number ESD-FPL-45-12 against official KEMET documentation to confirm current availability and compliance status. Ensure the supplier provides valid certificates of conformity. Check for any obsolescence notices or lifecycle changes directly from the manufacturer before finalizing procurement decisions.

Selection Notes

Select this component when flat cable EMI suppression is required with specific dimensional constraints. The 1.5mm internal width accommodates standard flat ribbons. Verify that the 100 ohm impedance at 100MHz meets the target noise frequency requirements. Confirm compatibility with assembly processes for solid cores.

Part Context

This part belongs to the KEMET ESD-FPL series of solid ferrite cable cores. These components are engineered for suppressing electromagnetic interference on flat ribbon cables. The series offers various dimensions and impedance values to suit different cable widths and noise profiles within electronic devices.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Do not assume generic ferrite cores are compatible due to varying material properties and impedance characteristics.
