ESD-FPL-45.2-8

Overview

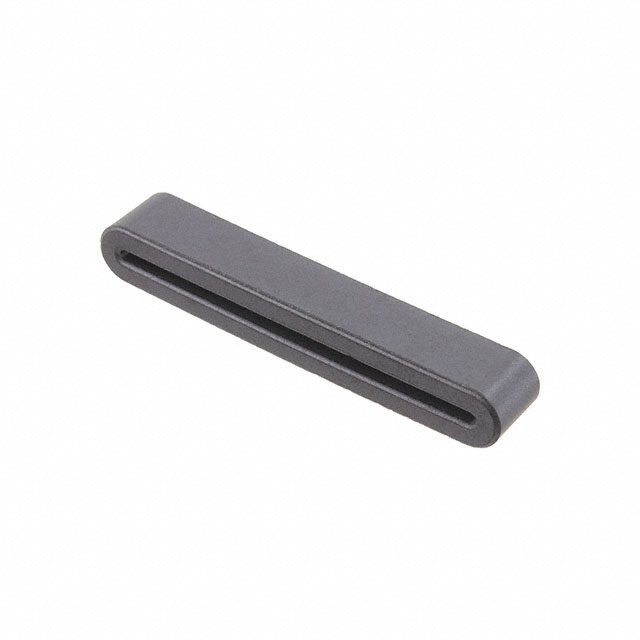

The KEMET ESD-FPL-45.2-8 is a solid core ferrite bead designed for flat ribbon cables. It features Nickel Zinc (Ni-Zn) material with an internal width of 1.3mm and an external length of 45.2mm. The component operates up to 300MHz and supports a maximum of 30 wires. It complies with RoHS standards.

Feature Summary

• Designed specifically for flat ribbon cable applications
• Utilizes Nickel Zinc (Ni-Zn) solid core material
• Supports up to 30 wires within the core aperture

Applications

• Flat ribbon cable filtering
• Electromagnetic interference suppression in consumer electronics

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm current availability status. Ensure that the Nickel Zinc material composition and physical dimensions match the design requirements. Confirm RoHS compliance certification is present in the latest datasheet before procurement.

Selection Notes

Select this component when filtering flat ribbon cables requiring Ni-Zn characteristics. Verify the internal width accommodates the target cable thickness. Check operational frequency limits against system noise profiles. Ensure mechanical fit within the assembly constraints.

Part Context

This component belongs to the KEMET ESD-FPL series of solid cores for flat cables. The series offers various dimensions and wire capacities. This specific model provides a balance of size and capacity for multi-conductor flat cables.

FAQ

What is the maximum number of wires supported?

The ESD-FPL-45.2-8 supports a maximum of 30 wires.

What material is used for the core?

The core is made of Nickel Zinc (Ni-Zn) ferrite material.
