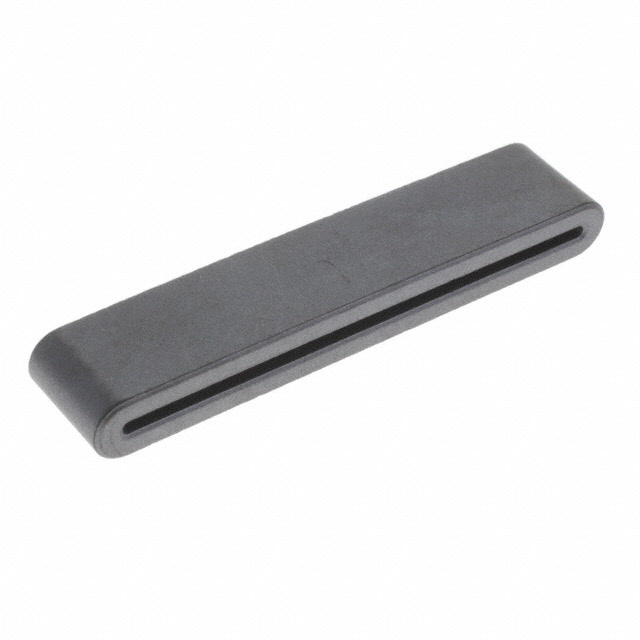

ESD-FPL-57.6-12

$3.53

Description：FERRITE CORE SOLID 52 X 1.3MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray

SKU:4d36e439f866 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 52 X 1.3MM
Series：ESD-FPL
Mfr：KEMET
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：2.047" W x 0.051" H (52.00mm x 1.30mm)
Outer Dimension：2.268" W x 0.256" H (57.60mm x 6.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-FPL-57.6-12

Overview

The KEMET ESD-FPL-57.6-12 is a solid core ferrite cable core designed for flat ribbon cables. It features a Nickel Zinc (Ni-Zn) core material and operates up to a maximum frequency of 300 MHz. The component has external dimensions of 57.6 mm in length, 12 mm in width, and 12 mm in height, with an internal opening of 1.3 mm. It supports a maximum operating temperature of +85°C and complies with RoHS standards.

Feature Summary

Solid core design specifically engineered for flat ribbon cables
Constructed from Nickel Zinc (Ni-Zn) material for high-frequency performance
Capable of operation at frequencies up to 300 MHz

Applications

Electromagnetic interference suppression in flat cable assemblies
Signal integrity protection in consumer electronics
Common mode noise filtering in data transmission lines

Procurement Notes

Verify the specific part number suffix against official KEMET documentation to ensure correct dimensional tolerances and material specifications. Confirm that the Ni-Zn composition aligns with the intended frequency range requirements. Check for current lifecycle status as distribution listings may vary regarding availability or obsolescence notices.

Selection Notes

Select this component when shielding flat ribbon cables within the specified physical constraints. Ensure the internal opening dimension accommodates the target cable thickness without excessive force. Validate that the Nickel Zinc material properties meet the required impedance characteristics for the specific noise frequencies encountered in the application environment.

Part Context

This component belongs to the KEMET ESD-FPL series of ferrite cable cores. These components are distinct from standard toroidal beads as they are shaped to fit flat conductors. The series provides solutions for managing electromagnetic emissions in compact electronic assemblies where traditional round ferrites cannot be applied effectively.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic equivalents may differ in Nickel Zinc formulation or dimensional tolerances, potentially affecting high-frequency attenuation performance.
