Product Detailed Parameters

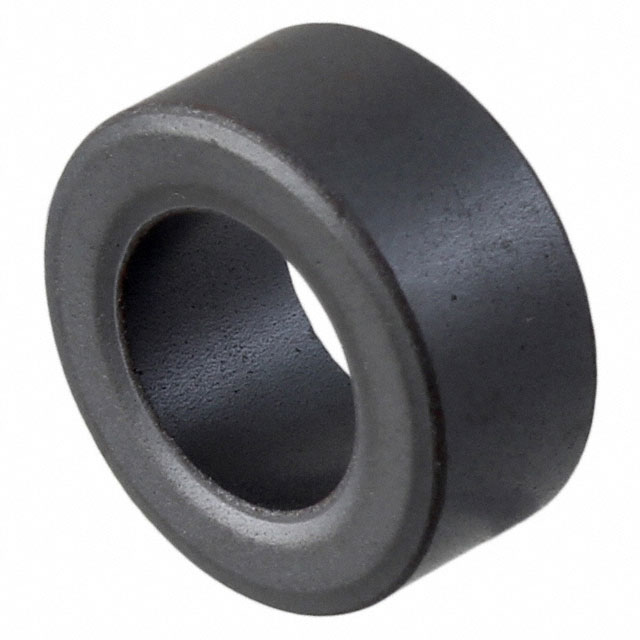

- Description：FERRITE CORE SOLID 6MM
- Series：ESD-R
- Mfr：KEMET
- Package：Bulk
- Type：Round
- Design：Solid
- Impedance @ Frequency：-
- Material：NIZn
- Inner Dimension：0.236" Dia (6.00mm)
- Outer Dimension：0.507" Dia (12.90mm)
- Ratings：-
- Mounting Type：Free Hanging
- Length：0.252" (6.40mm)
Download product information
Overview
The KEMET ESD-R-12D is a solid toroidal ferrite core designed for suppression of electromagnetic interference on round cables. Constructed from Nickel Zinc (NiZn) material, it features an outer diameter of 6mm and an inner diameter of 6.4mm. The component is engineered for free-hanging installation directly onto cables without additional casing.
Feature Summary
- Solid toroidal geometry optimized for round cable applications
- Nickel Zinc composition suitable for high-frequency noise suppression
- Free-hanging design eliminates the need for external mounting hardware
Applications
- Electromagnetic interference suppression on round cables
- Common mode noise reduction in electronic assemblies
- Cable filtering in consumer electronics
Procurement Notes
Verify the specific material grade and dimensional tolerances against the official KEMET datasheet prior to procurement. Confirm that the NiZn composition aligns with the required frequency range for the target application. Ensure the solid toroidal form factor fits within the available spatial constraints of the assembly.
Selection Notes
Select this component when round cable filtering is required without the bulk of clamshell designs. The NiZn material offers distinct performance characteristics compared to MnZn alternatives. Verify that the 6mm outer diameter accommodates the cable bundle size while maintaining effective magnetic coupling for the intended noise frequencies.
Part Context
This part belongs to the KEMET ESD-R series of solid toroidal ferrite cores. These components are specifically engineered for direct integration onto round cables to mitigate electromagnetic interference. The series provides various material options to address different frequency suppression requirements across diverse electronic environments.
Replacement Considerations
Direct substitutes include other solid toroidal ferrite cores with matching dimensions and NiZn composition. Verify compatibility with existing cable diameters and mounting configurations before substitution.
