ESD-R-1317426H-NC21-BT

$100.56

Description：FERRITE CORE SOLID 74MM
Series：ESD-R-NC
Mfr：KEMET
Package：Tray

SKU:197b8e27fae3 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 74MM
Series：ESD-R-NC
Mfr：KEMET
Package：Tray
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：-
Inner Dimension：2.913" Dia (74.00mm)
Outer Dimension：5.157" Dia (131.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.024" (26.00mm)

Download product information

ESD-R-1317426H-NC21-BT

Overview

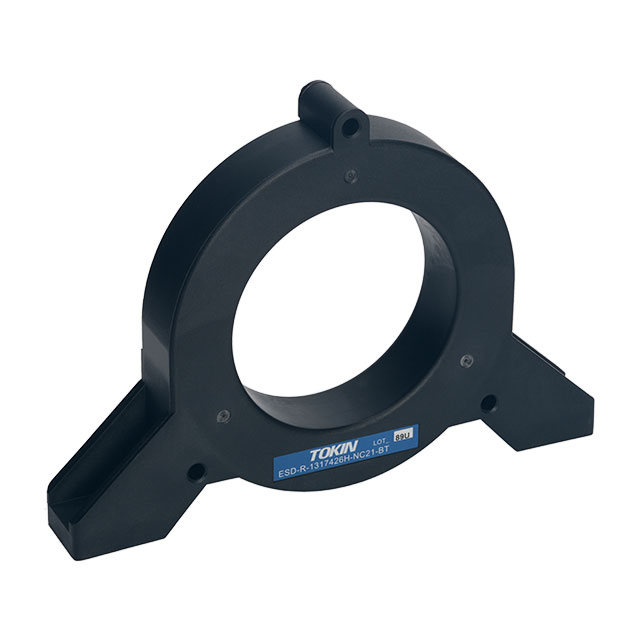

The KEMET ESD-R-1317426H-NC21-BT is a nanocrystal ferrite toroid core designed for electromagnetic interference suppression. It features an inner diameter of 74 mm, an outer diameter of 131 mm, and a length of 26 mm. The component operates within a temperature range of -40°C to +130°C. It is classified as a solid free-hanging ferrite core intended for low-frequency applications.

Feature Summary

Utilizes nanocrystal material composition for effective magnetic performance
Designed as a solid free-hanging core structure for cable mounting
Engineered for electromagnetic interference suppression in low-frequency environments

Applications

Low-frequency electromagnetic interference suppression
Cable-mounted noise filtering applications
Industrial equipment EMI mitigation

Procurement Notes

Verify the specific ordering suffix against official KEMET documentation to ensure accurate physical dimensions and material specifications. Confirm that the nanocrystal composition aligns with the required frequency response characteristics for the target application environment.

Selection Notes

Select this component when large aperture dimensions are required for thick cables or busbars. Ensure the operating temperature range up to +130°C meets the thermal conditions of the installation site. Validate that the nanocrystal core properties suit the specific low-frequency attenuation requirements.

Part Context

This part belongs to the KEMET ESD-R series of ferrite cores. The series includes various toroidal and clamp-on configurations utilizing different core materials. This specific model represents a high-volume nanocrystal option for substantial cable diameters.

Replacement Considerations

Consult official KEMET substitution guides for direct equivalents. Verify dimensional compatibility and magnetic permeability ratings before adopting alternative suppliers.
