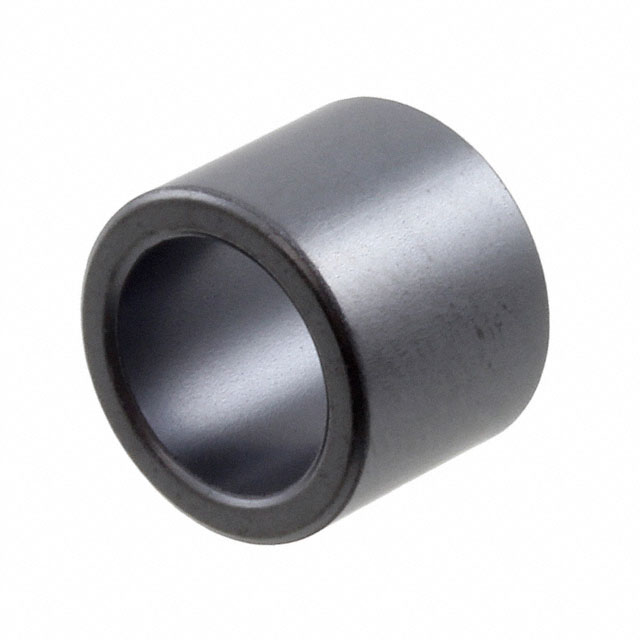

ESD-R-15C-1

$0.69

Description：FERRITE CORE SOLID 10.5MM
Series：ESD-R
Mfr：KEMET
Package：Bulk

SKU:eef2d7541d8a Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 10.5MM
Series：ESD-R
Mfr：KEMET
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.413" Dia (10.50mm)
Outer Dimension：0.591" Dia (15.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.472" (12.00mm)

Download product information

ESD-R-15C-1

Overview

The KEMET ESD-R-15C-1 is a solid free-hanging ferrite ring toroidal core designed for electromagnetic interference suppression. Constructed from Nickel Zinc material, it operates within a temperature range of -25°C to +85°C and is rated for frequencies up to 300 MHz. The component features an internal diameter of 10.50 mm (0.413 inches), an external diameter of 15.00 mm (0.591 inches), and a length of 12.00 mm (0.472 inches). It is supplied in bulk packaging.

Feature Summary

Solid free-hanging design for easy installation on round cables
Nickel Zinc composition for high-frequency noise attenuation
RoHS compliant construction

Applications

Electromagnetic interference filtering for electronic equipment
Noise suppression on round cables in consumer electronics
Signal integrity enhancement in communication devices

Procurement Notes

Verify the Nickel Zinc material composition and dimensional specifications against project requirements. Confirm RoHS compliance status with the supplier. Ensure the operating temperature range meets environmental conditions. Check for any specific handling instructions regarding the bulk packaging format.

Selection Notes

Select this component when a snap-on or free-hanging ferrite solution is required for round cables. The Nickel Zinc material offers suitable impedance characteristics for high-frequency applications up to 300 MHz. Consider the physical dimensions to ensure compatibility with cable diameters and available space constraints.

Part Context

This part belongs to the KEMET ESD-R series of ferrite rings. These components are passive elements used primarily for common-mode noise reduction. The series provides various sizes and materials to suit different frequency ranges and cable types, supporting general EMI mitigation strategies in commercial and industrial electronics.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Ensure any replacement matches the Nickel Zinc material type and dimensional tolerances. Verify that alternative components maintain equivalent high-frequency performance characteristics.
