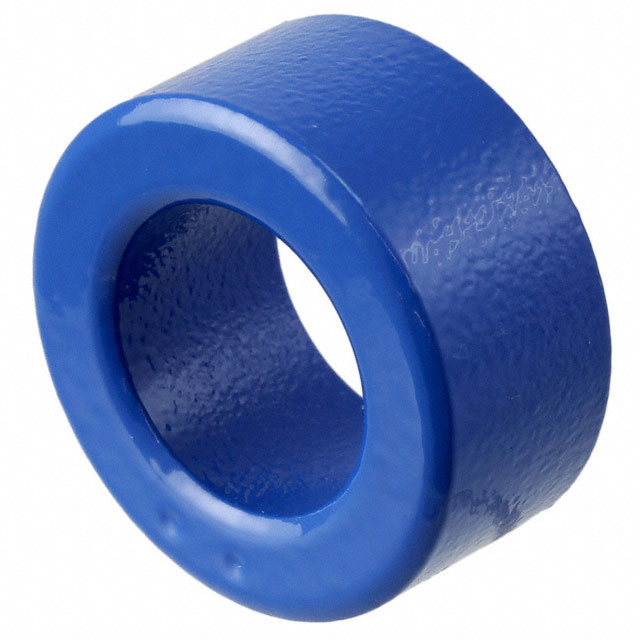

ESD-R-25L-A

$1.92

Description：FERRITE CORE SOLID 15.1MM
Series：ESD-R
Mfr：KEMET
Package：Bulk

SKU:c6470bbd1e73 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 15.1MM
Series：ESD-R
Mfr：KEMET
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.594" Dia (15.10mm)
Outer Dimension：0.996" Dia (25.30mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.476" (12.10mm)

Download product information

ESD-R-25L-A

Overview

The KEMET ESD-R-25L-A is a solid, free-hanging ferrite core designed for electromagnetic interference (EMI) suppression. It features a circular geometry with an inner diameter of 0.594 inches (15.10 mm), an outer diameter of 0.996 inches (25.30 mm), and a length of 0.476 inches (12.10 mm). The component is constructed from manganese-zinc (MnZn) material and belongs to the ESD-R-H series. It is currently in production and RoHS compliant.

Feature Summary

Solid construction provides structural integrity for cable shielding applications
Free-hanging design allows for easy installation on round cables without mounting hardware
Manganese-zinc material composition supports effective high-frequency noise attenuation

Applications

Electromagnetic interference suppression on round cables
Common mode noise filtering in electronic assemblies
Cable shielding for signal integrity enhancement

Procurement Notes

Verify the specific suffix 'A' against official KEMET documentation to confirm exact dimensional tolerances and material grade. Ensure compatibility with cable diameters within the 15.10 mm inner diameter specification. Confirm RoHS3 compliance status through current manufacturer datasheets prior to final procurement decisions.

Selection Notes

Select this component when a solid, non-split ferrite core is required for permanent cable installations. The MnZn material is suitable for frequencies typically addressed by the ESD-R-H series. Verify that the 15.10 mm inner diameter accommodates the target cable bundle size while maintaining sufficient magnetic path cross-section for intended noise levels.

Part Context

This part belongs to the KEMET ESD-R-H series of solid ferrite cores. These components are engineered for general-purpose EMI suppression on round cables. The series offers various dimensions to fit different cable sizes, utilizing MnZn materials for effective noise reduction in electronic environments.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic equivalents may differ in material permeability or dimensional tolerances.
