ESD-R-341616H-NC23

Overview

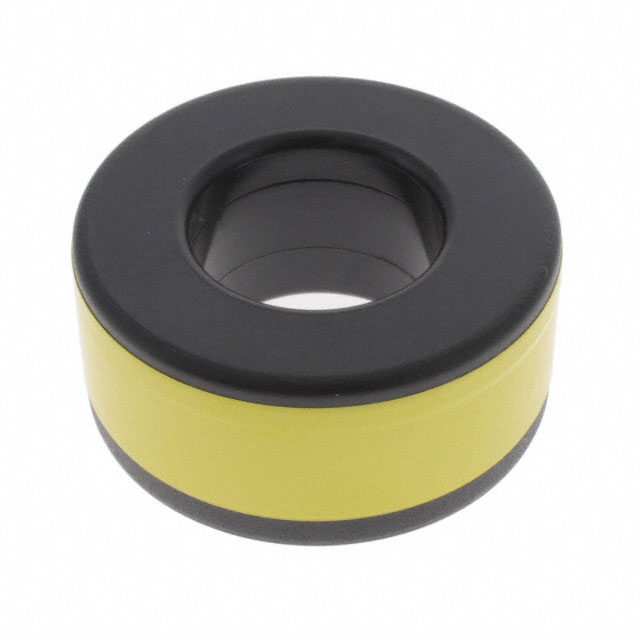

The KEMET ESD-R-341616H-NC23 is a nanocrystalline toroidal ferrite core designed for electromagnetic interference suppression. It features solid construction with an inner diameter of 16.5 mm, outer diameter of 34 mm, and length of 16 mm. The component operates within a temperature range of -40°C to +120°C and is rated for frequencies up to 10 MHz.

Feature Summary

• Utilizes nanocrystalline material for high magnetic permeability and effective noise attenuation across broad frequency bands.

Applications

• Electromagnetic interference suppression in electronic circuits

Procurement Notes

Verify the specific nanocrystalline composition and dimensional tolerances against the official KEMET datasheet prior to integration. Confirm that the operating temperature range aligns with the system's thermal requirements. Ensure the inner diameter accommodates the target cable or conductor without mechanical stress.

Selection Notes

Select this component when broadband noise suppression is required for cables fitting within the 16.5 mm aperture. The nanocrystalline material offers superior performance compared to standard ferrites at lower frequencies. Evaluate the thermal environment to ensure operation remains within the specified -40°C to +120°C limits.

Part Context

This part belongs to the ESD-R-H series of solid toroidal cores manufactured by KEMET. These components are engineered for round cable applications where snap-on designs are unsuitable. The series provides robust shielding capabilities for signal integrity maintenance in sensitive electronic assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs through direct electrical and mechanical testing if alternative sourcing is necessary.
