ESD-R-38

Overview

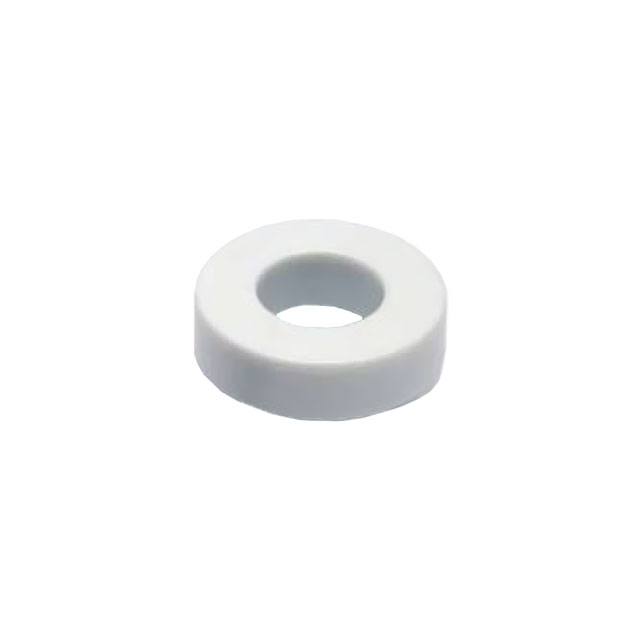

The KEMET ESD-R-38 is a toroidal ferrite core clamp designed for electromagnetic interference suppression. It features an inner diameter of 17.9 mm and an outer diameter of 42.4 mm, with physical dimensions of 42.4 mm length, 16 mm height, and 16 mm depth. The component operates effectively at frequencies up to 300 MHz, providing impedance characteristics suitable for cable routing applications.

Feature Summary

• Provides effective electromagnetic interference suppression for cables
• Utilizes manganese zinc material for high permeability
• Features a split-core design for easy installation on existing wiring

Applications

• Suppression of electromagnetic interference in cable assemblies
• EMI filtering for data and power lines
• ESD protection in electronic equipment cabling

Procurement Notes

Verify the specific suffix (e.g., D) against the required datasheet revision. Confirm compliance with RoHS and REACH standards as applicable. Ensure the inner diameter matches the target cable bundle size. Check packaging details such as bulk quantities if specified by the supplier.

Selection Notes

Select based on the required frequency range and cable diameter. The MnZn material offers high impedance at lower frequencies compared to NiZn types. Ensure the operating temperature range meets the environmental requirements of the application. Verify that the physical dimensions allow for adequate clearance in the assembly.

Part Context

This component belongs to the ESD-R Toroidal Cores series from KEMET. These cores are engineered for efficient noise reduction in various electronic systems. The series provides reliable performance for managing conducted emissions and enhancing signal integrity in sensitive circuits.

Replacement Considerations

Check for direct substitutes within the ESD-R series with compatible inner diameters. Verify that alternative materials maintain similar impedance characteristics at the target frequency. Ensure mechanical fit and thermal ratings are equivalent.
