ESD-R-38M-H

$4.81

Description：FERRITE CORE SOLID 16.7MM
Series：ESD-R-H
Mfr：KEMET
Package：Bulk

SKU:56b0ce5a9af3 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 16.7MM
Series：ESD-R-H
Mfr：KEMET
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：MnZn
Inner Dimension：0.657" Dia (16.70mm)
Outer Dimension：1.654" Dia (42.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.669" (17.00mm)

Download product information

ESD-R-38M-H

Overview

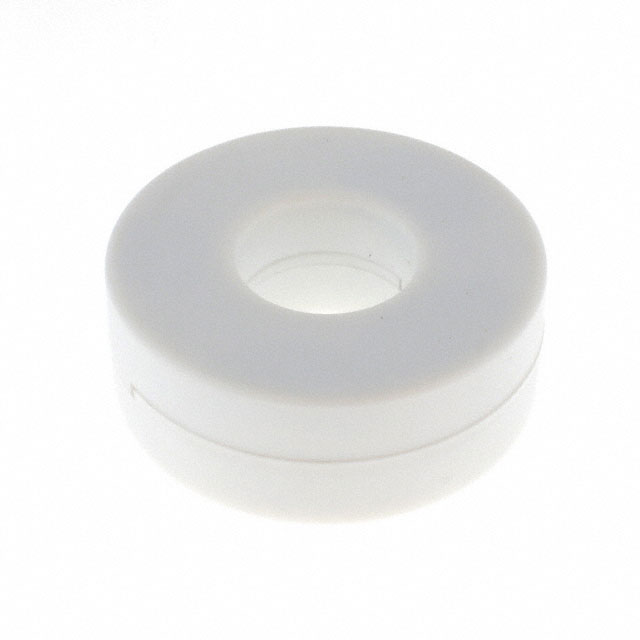

The KEMET ESD-R-38M-H is a solid MnZn ferrite core designed for electromagnetic interference suppression. It features a round shape with an inner diameter of 16.7 mm, an outer diameter of 42 mm, and an external length of 17 mm. The component operates within a temperature range of -55°C to +120°C and is rated for frequencies up to 10 MHz. It is supplied in bulk packaging and complies with RoHS3 standards.

Feature Summary

Solid construction provides mechanical stability for cable mounting
Manganese Zinc material offers high permeability for low-frequency noise attenuation
Free-hanging installation allows flexible placement on cables

Applications

Electromagnetic interference suppression on power cables
Common mode noise reduction in industrial equipment wiring
Signal integrity enhancement for data transmission lines

Procurement Notes

Verify the specific suffix 'H' against the manufacturer datasheet to confirm material grade and frequency characteristics. Ensure the inner diameter matches the target cable bundle size. Confirm RoHS3 compliance status if required by project specifications. Check lead times as they may vary based on manufacturing schedules.

Selection Notes

Select this component when targeting noise frequencies around 10 MHz. The 16.7 mm inner diameter accommodates cables of corresponding thickness. Consider the 120°C maximum operating temperature for thermal environments. Compare impedance characteristics with alternative series if higher frequency performance is needed.

Part Context

This part belongs to the ESD-R-H series of solid ferrite cores from KEMET. These components are engineered for general-purpose EMI suppression. The series utilizes manganese zinc ferrite materials optimized for broadband noise absorption. They serve as passive filtering elements in electronic assemblies.

Replacement Considerations

Consult official substitution lists for equivalent impedance profiles. Verify dimensional compatibility before swapping manufacturers. Ensure thermal ratings meet or exceed original requirements.
