ESD-R-512419XH-R1

$6.60

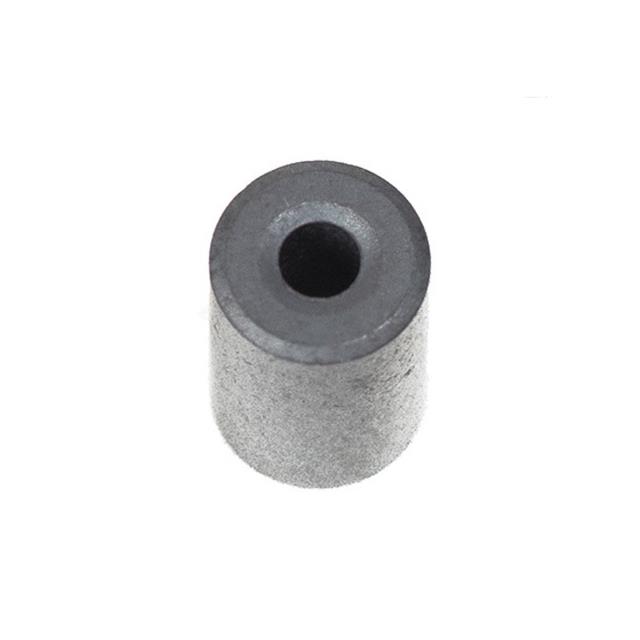

Description：FERRITE CORE SOLID 24.4MM
Series：ESD-R-H
Mfr：KEMET
Package：Tray

SKU:034a07b0f327 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 24.4MM
Series：ESD-R-H
Mfr：KEMET
Package：Tray
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：MnZn
Inner Dimension：0.961" Dia (24.40mm)
Outer Dimension：2.008" Dia (51.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.748" (19.00mm)

Download product information

ESD-R-512419XH-R1

Overview

The KEMET ESD-R-512419XH-R1 is a cylindrical ferrite core designed for electromagnetic interference suppression on round cables. It features an outer diameter of 51 mm, an inner diameter of 24.4 mm, and a length of 19 mm. The component utilizes Ni-Zn ferromagnetic material with a high-frequency rating of 500 MHz. It operates within a temperature range of -40°C to +120°C and meets UL94 V-0 flammability standards.

Feature Summary

Cylindrical geometry optimized for clamping around existing round cables
Ni-Zn material composition provides effective attenuation at high frequencies up to 500 MHz
High heat resistance rated for operation up to +120°C
UL94 V-0 certified for flame retardancy

Applications

Electromagnetic interference suppression on power and signal cables
Common mode noise reduction in electronic equipment wiring
Cable harness filtering in industrial control systems

Procurement Notes

Verify the specific suffix R1 against official KEMET documentation to confirm material grade and impedance characteristics. Ensure the physical dimensions match the cable bundle diameter before integration. Confirm RoHS compliance status through current manufacturer certificates as regulatory requirements may evolve.

Selection Notes

Select this component when high-frequency noise suppression is required for cables that cannot be easily disconnected. The 24.4 mm inner diameter dictates the maximum cable size. Verify that the operating environment temperature does not exceed the +120°C limit to maintain magnetic performance integrity.

Part Context

This part belongs to the ESD-R-H series of solid ferrite cores manufactured by KEMET. These components are distinct from split-core designs as they require cable insertion during assembly. The series is engineered for robust EMI/RFI mitigation in demanding electrical environments.

Replacement Considerations

Cross-reference with part number UCECSDR5124R10 for potential equivalent specifications. Verify dimensional compatibility and frequency response curves before substitution.
