ESD-R-512936H-NC23

$33.53

Description：FERRITE CORE SOLID 29.5MM
Series：ESD-R-NC
Mfr：KEMET
Package：Bulk,Tray

SKU:2f39b4132607 Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE SOLID 29.5MM
Series：ESD-R-NC
Mfr：KEMET
Package：Bulk,Tray
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：-
Inner Dimension：1.161" Dia (29.50mm)
Outer Dimension：2.008" Dia (51.00mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.417" (36.00mm)

Download product information

ESD-R-512936H-NC23

Overview

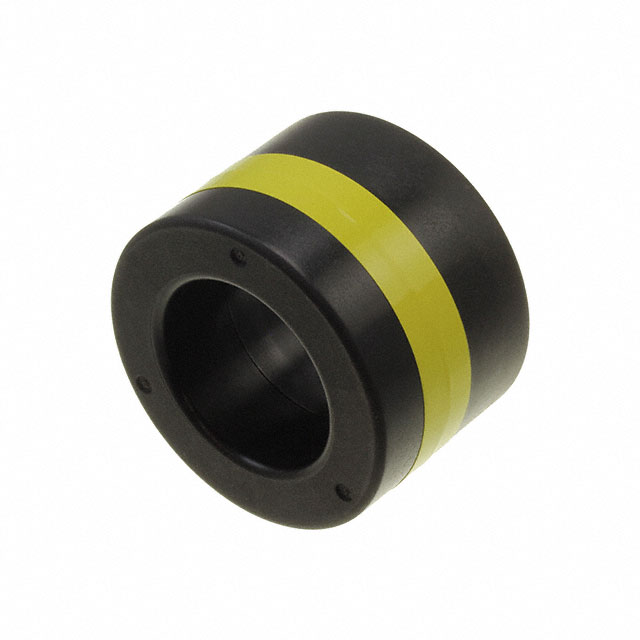

The KEMET ESD-R-512936H-NC23 is a nanocrystal ferrite toroid designed for electromagnetic interference suppression on round cables. It features an outer diameter of 51 mm, an inner diameter of 29.5 mm, and an external length of 36 mm. The component operates within a temperature range of -40°C to +120°C and supports frequencies up to 300 MHz.

Feature Summary

Utilizes nanocrystal material for effective noise suppression
Solid toroidal design optimized for round cable mounting
High thermal stability suitable for demanding environments

Applications

Electromagnetic interference filtering on power cables
Signal line noise suppression in industrial equipment
Common mode choke applications for data transmission lines

Procurement Notes

Verify the specific nanocrystal composition and dimensional tolerances against the official KEMET datasheet before integration. Confirm that the operating temperature range meets the environmental requirements of the final assembly. Ensure cable diameters fall within the specified inner diameter limits for proper fit and performance.

Selection Notes

Select this component when high-frequency noise attenuation is required on round conductors. The nanocrystal material offers superior performance compared to standard ferrites in specific frequency bands. Consider the physical dimensions and mounting constraints when designing the enclosure or harness layout.

Part Context

This part belongs to the ESD-R-NC series of solid toroidal cores from KEMET. The series utilizes advanced nanocrystalline materials to provide enhanced magnetic properties for EMI/RFI suppression. These cores are distinct from traditional ferrite rings due to their specific material composition and manufacturing process.

Replacement Considerations

Direct substitutes must match the 51x29.5x36 mm dimensions and nanocrystal material characteristics. Verify compatibility with existing cable sizes and frequency response requirements. Consult KEMET documentation for approved alternative part numbers within the same series.
