ESD-R-613325H-NC23

Overview

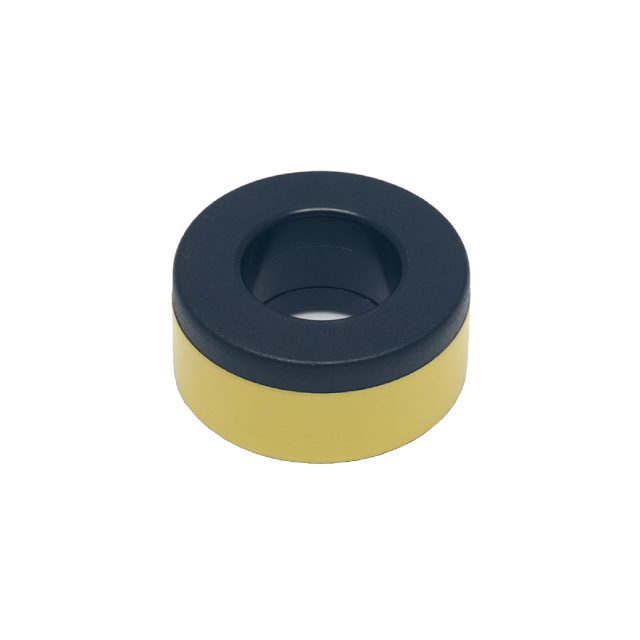

The KEMET ESD-R-613325H-NC23 is a nanocrystal ferrite toroid designed for electromagnetic interference suppression. It features an outer diameter of 61 mm, an inner diameter of 33.2 mm, and an external height of 25 mm. The component operates within a temperature range of -40°C to +120°C and supports frequencies up to 300 MHz. Packaged in trays, this core utilizes nanocrystalline material to provide effective noise attenuation in high-performance electronic circuits.

Feature Summary

• Utilizes nanocrystalline material for superior magnetic properties
• Designed for effective electromagnetic interference suppression
• Capable of operation at elevated temperatures up to 120°C

Applications

• High-frequency circuit noise filtering
• Electromagnetic compatibility enhancement
• Power supply line conditioning

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the nanocrystal composition and dimensional tolerances meet your design requirements. Check for any specific handling instructions related to the fragile nature of toroidal cores. Ensure compliance with relevant environmental standards such as RoHS if applicable to your region.

Selection Notes

Select this component when high permeability and low loss characteristics are required at frequencies up to 300 MHz. Consider the physical dimensions (61x33.2x25mm) to ensure adequate space in the assembly. Evaluate the thermal performance to confirm suitability for environments reaching 120°C. Compare alternative materials if lower cost or different frequency responses are prioritized over nanocrystal performance.

Part Context

This component belongs to the ESD-R series of ferrite toroids from KEMET. These cores are engineered for robust EMI/RFI suppression in demanding electronic applications. The series offers various sizes and materials to suit different current levels and frequency ranges, providing designers with flexible options for circuit protection and signal integrity management.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure replacement parts match the nanocrystal material type and dimensional specifications. Verify that substitute components maintain the same frequency response and temperature ratings.
