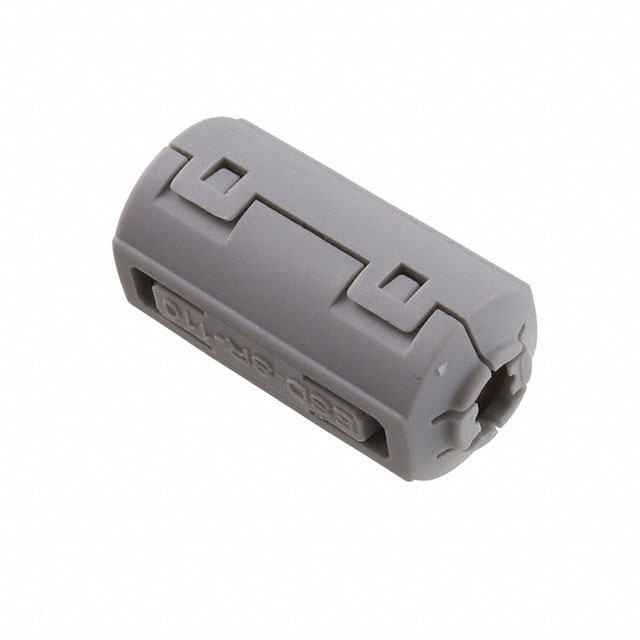

ESD-SR-110G

$2.37

Description：FERRITE CORE HINGED 5MM
Series：ESD-SR
Mfr：KEMET
Package：Tray

SKU:799ced972a2e Category: Cable Ferrites Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE HINGED 5MM
Series：ESD-SR
Mfr：KEMET
Package：Tray
Type：Round
Design：Hinged (Snap On)
Impedance @ Frequency：-
Material：NIZn
Inner Dimension：0.197" Dia (5.00mm)
Outer Dimension：0.567" W x 0.559" H (14.40mm x 14.20mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.102" (28.00mm)

Download product information

ESD-SR-110G

Overview

The KEMET ESD-SR-110G is a snap-on ferrite core designed for round cables. It features a nickel-zinc material composition with a 5 mm inner diameter and dimensions of 14.4 mm x 14.2 mm x 28 mm. The component provides an impedance of 175 Ω at 25 MHz and 320 Ω at 100 MHz. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

Snap-on design enables rapid installation on round cables without disconnection
Nickel-zinc ferrite material construction for effective high-frequency noise suppression
ESD-rated performance for electrostatic discharge protection in sensitive circuits

Applications

Electromagnetic interference suppression in consumer electronics
Cable noise filtering in automotive applications
Signal integrity enhancement in industrial equipment

Procurement Notes

Verify the specific suffix 'G' against official KEMET documentation to confirm compliance details. Ensure the required impedance values at 25 MHz and 100 MHz match the application requirements. Confirm RoHS certification status through the manufacturer's current datasheet before procurement.

Selection Notes

Select this component when a non-invasive, snap-on solution is required for round cable noise suppression. The 5 mm aperture dictates the maximum cable diameter. Verify that the Ni-Zn material characteristics align with the target frequency spectrum of the interference being mitigated.

Part Context

This part belongs to the KEMET ESD-SR Snap-on Cores series, which specializes in ferrite cores for electromagnetic interference suppression. The series offers various sizes and materials tailored for different cable diameters and frequency ranges, providing flexible solutions for EMI/RFI mitigation across multiple industries.

Replacement Considerations

Cross-reference with other ESD-SR series variants such as ESD-SR-160 for different cable diameters. Verify dimensional compatibility and impedance curves against original specifications to ensure equivalent noise suppression performance.
