ESD-SR-160G

Overview

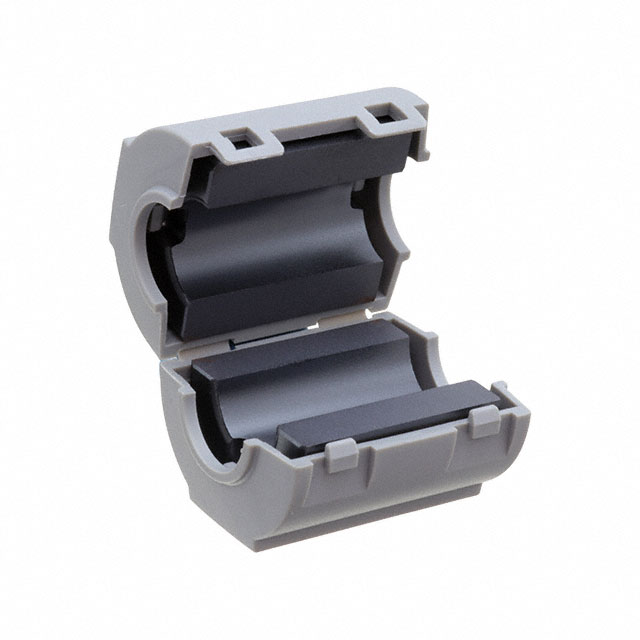

The KEMET ESD-SR-160G is a Nickel Zinc (Ni-Zn) snap-on ferrite core designed for round cables. It features an internal diameter of 9 mm, an external width of 20.2 mm, and an external length of 39 mm. The component provides an impedance of 145 Ω at 25 MHz and 246 Ω at 100 MHz. It operates within a temperature range of -55°C to +85°C and complies with RoHS standards.

Feature Summary

• Snap-on design allows for rapid installation on existing round cables without disconnection.
• Nickel Zinc material composition ensures effective high-frequency noise suppression.

Applications

• Electromagnetic interference suppression in consumer electronics
• High-frequency noise filtering on signal and power cables

Procurement Notes

Verify the specific suffix 'G' against official KEMET documentation to confirm if it denotes a distinct variant or packaging specification compared to the base ESD-SR-160 model. Ensure the Ni-Zn material selection aligns with the target frequency requirements of the application circuit.

Selection Notes

Select this component when retrofitting EMI suppression onto pre-assembled round cables is required. The 9 mm inner diameter dictates the maximum cable size that can be accommodated. Verify that the Ni-Zn material properties match the specific frequency band where attenuation is needed.

Part Context

This part belongs to the KEMET ESD-SR Snap-on Cores series, which offers a range of Manganese Zinc and Nickel Zinc options. These cores are engineered specifically for easy attachment to round cables to mitigate electromagnetic interference in electronic circuits.

FAQ

What is the inner diameter of the ESD-SR-160G?

The inner diameter is 9 mm.

Is this component suitable for square cables?

No, the ESD-SR Series is designed specifically for use on round cables.
