ESD-SR-160HL

Overview

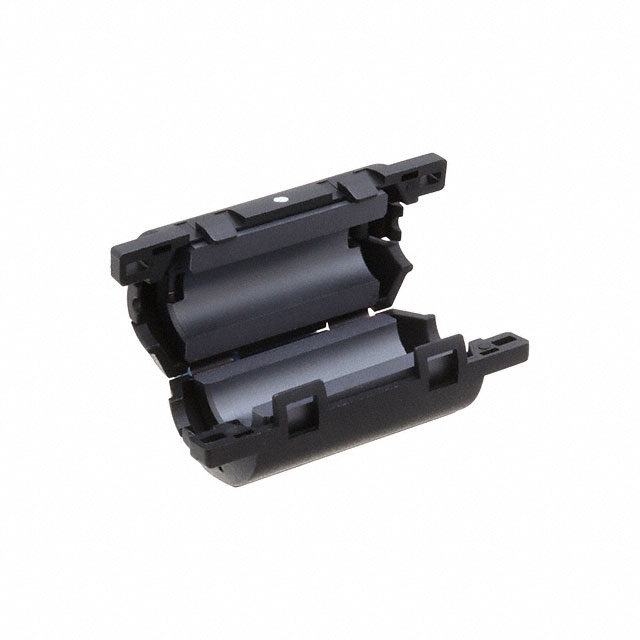

The KEMET ESD-SR-160HL is a nickel-zinc ferrite snap-on core designed for electromagnetic interference suppression. It features a round shape with an internal diameter of 9 mm and external dimensions of 19.5 mm width, 19.5 mm height, and 38.5 mm length. The component operates up to +125°C and is RoHS compliant.

Feature Summary

• Snap-on design enables rapid installation on cables without disconnection
• Nickel-zinc material composition provides effective high-frequency noise attenuation
• Round geometry accommodates standard cable bundles

Applications

• Consumer electronics cable shielding
• High-speed data line noise suppression
• Power supply cable EMI mitigation

Procurement Notes

Verify the specific suffix HL against official KEMET documentation to confirm dimensional tolerances and temperature ratings. Ensure the selected variant matches the required cable diameter and impedance characteristics for the target application frequency range.

Selection Notes

Select this component when a snap-on ferrite solution is required for cables with a 9 mm inner diameter. Confirm that the operating environment does not exceed the maximum temperature rating and that the physical dimensions fit within the available space constraints.

Part Context

This part belongs to the ESD-SR series of snap-on ferrite cores manufactured by KEMET. These components are engineered for easy integration into existing cable assemblies to suppress common-mode noise in electronic circuits.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic ferrite cores may differ in material properties or impedance profiles.
