Product Detailed Parameters
- Description：FERRITE CORE HINGED 6MM
- Series：ESD-SR
- Mfr：KEMET
- Package：Bulk,Tray
- Type：Round
- Design：Hinged (Snap On)
- Impedance @ Frequency：-
- Material：-
- Inner Dimension：0.236" Dia (6.00mm)
- Outer Dimension：0.610" W x 0.551" H (15.50mm x 14.00mm)
- Ratings：-
- Mounting Type：Free Hanging
- Length：0.728" (18.50mm)
Download product information
Overview

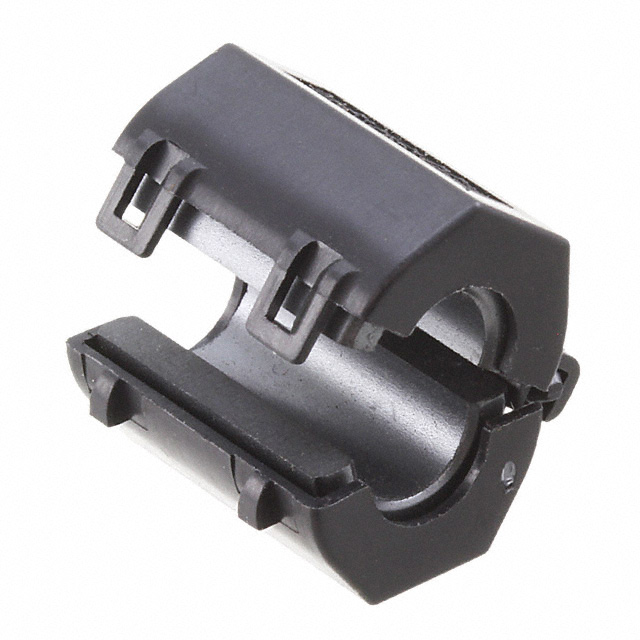

The KEMET ESD-SR-S10 is a snap-on ferrite core designed for round cables within the ESD-SR Snap-on Cores series. It features an inner diameter of 6 mm and physical dimensions of 15.5 mm x 14 mm x 18.5 mm. The component provides an impedance of 55 Ω at 25 MHz and 110 Ω at 100 MHz, utilizing nickel-zinc ferrite material to suppress electromagnetic interference.
Feature Summary
- Snap-on design enables rapid installation on round cables without disconnection
- Nickel-zinc ferrite composition supports high-frequency noise suppression
- Open structure allows easy placement around existing wiring harnesses
Applications
- Electromagnetic interference suppression in consumer electronics
- Cable noise filtering for signal integrity enhancement
- ESD protection for data and power lines
Procurement Notes
Verify the manufacturer part number ESD-SR-S10 against official Kemet documentation to confirm specifications. Ensure the cable diameter falls within the 6 mm inner diameter limit. Check for RoHS compliance status in the specific datasheet version. Confirm that the application environment temperature remains within the standard operating range defined by the manufacturer.
Selection Notes
Select this component when a quick-install solution for round cables is required. The 6 mm aperture dictates the maximum cable size. Choose based on the required impedance profile at target frequencies. Verify that the snap-on mechanism fits the specific cable geometry securely.
Part Context
This component belongs to the ESD-SR Snap-on Cores series from KEMET. These cores are engineered for effective common-mode noise reduction. The series offers various sizes to accommodate different cable diameters while maintaining consistent performance characteristics across the product line.
Replacement Considerations
Consult Kemet's official substitution guide for verified alternatives. Ensure any replacement matches the 6 mm inner diameter and similar impedance values at 25 MHz and 100 MHz. Physical dimensions must fit the available space.
