ESD-SR-S10M

Overview

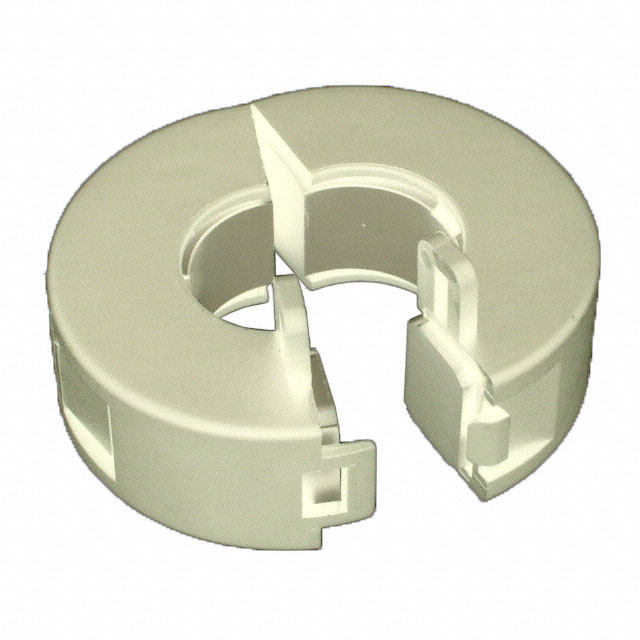

The KEMET ESD-SR-S10M is a snap-on ferrite core designed for electromagnetic interference suppression on round cables. It features a manganese-zinc material composition and an inner diameter of 6.0 mm. The component measures 15.5 mm in length, 14 mm in width, and 18.5 mm in height. It provides an impedance of 110 Ω at 100 MHz and 55 Ω at 25 MHz. The device operates within a temperature range up to +85°C and is rated for use with single cable passes.

Feature Summary

• Snap-on design allows for rapid installation onto existing round cables without disconnection.
• Utilizes manganese-zinc ferrite material for effective high-frequency noise attenuation.
• Provides specific impedance characteristics optimized for electromagnetic interference suppression.

Applications

• Electromagnetic interference filtering on consumer electronic cabling
• Suppression of radio frequency noise on signal lines
• Compliance enhancement for electromagnetic compatibility standards

Procurement Notes

Verify the exact suffix designation against official KEMET documentation to ensure correct material properties and impedance ratings. Confirm that the inner diameter matches the target cable dimensions prior to procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current production status and technical specifications.

Selection Notes

Select this component when a non-invasive solution for cable noise reduction is required. Ensure the cable diameter falls within the 6.0 mm inner diameter specification. Consider the operating temperature environment relative to the +85°C maximum rating. Evaluate the required impedance profile at specific frequencies to confirm suitability for the targeted interference spectrum.

Part Context

This component belongs to the ESD-SR Snap-on Cores series from KEMET. This series offers various sizes and materials tailored for different cable diameters and frequency ranges. The ESD-SR-S10M specifically addresses applications requiring a 6 mm aperture with manganese-zinc characteristics for mid-to-high frequency suppression.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic ferrite cores may not match the specific impedance curve or mechanical fit. Verify that any substitute maintains the same inner diameter and temperature rating.
