ESD-SR-S16

Overview

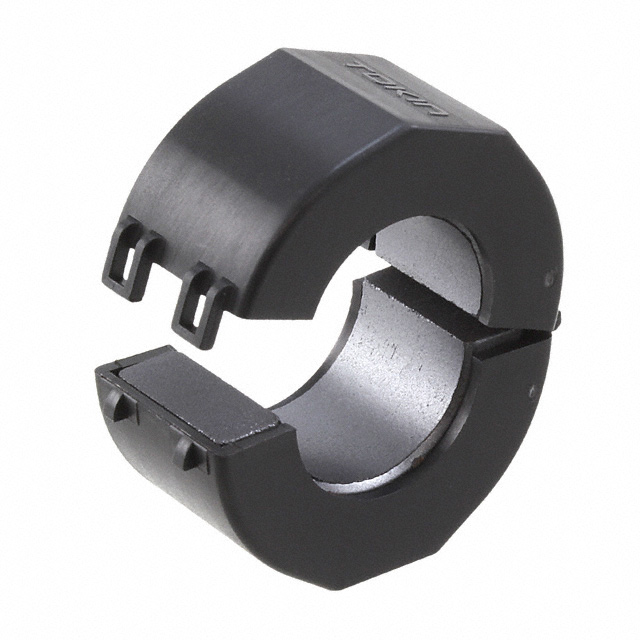

The KEMET ESD-SR-S16 is a split ferrite clamp-on core designed for electromagnetic interference suppression on round cables. Constructed from nickel-zinc material, it features a snap-on mechanism for rapid installation without cable disconnection. The component has an internal diameter of 8 mm and operates within a temperature range up to +85°C. It complies with UL94V-0 flame class standards and RoHS directives.

Feature Summary

• Split construction enables snap-on installation around existing cables
• Nickel-zinc composition provides effective high-frequency noise attenuation
• UL94V-0 rated housing ensures flame retardant safety compliance

Applications

• Suppression of electromagnetic interference on round cables
• ESD protection in electronic assemblies
• Signal integrity enhancement in industrial equipment

Procurement Notes

Verify the specific part number suffix against official KEMET documentation to confirm current manufacturing status. The provided source indicates this model may be scheduled for obsolescence. Confirm availability through authorized distributors and ensure the received component matches the specified 8 mm aperture and nickel-zinc material composition.

Selection Notes

Select this component when retrofitting ferrite suppression onto existing cabling is required. The split design eliminates the need to disconnect wires during installation. Ensure the target cable diameter fits within the 8 mm internal opening. Verify that the operating environment temperature does not exceed the maximum rating of +85°C.

Part Context

This component belongs to the ESD-SR Snap-on Cores series by KEMET. These cores are engineered for convenient field installation on round cables. The series utilizes nickel-zinc ferrite materials optimized for suppressing common mode noise in the high-frequency spectrum.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
