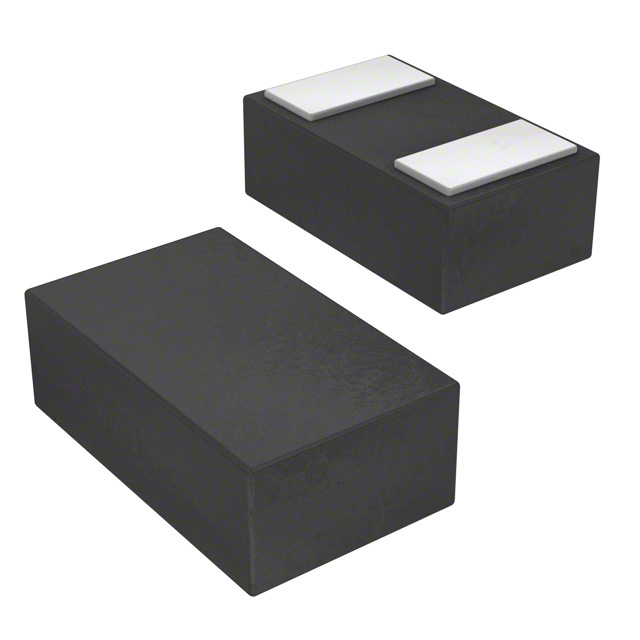

ESD451DPLR is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is TVS DIODE 5.5VWM 9.5VC 2X2SON. Review the specifications below when checking this part for your BOM.
Tvs Diodes specifications for ESD451DPLR
- Description：TVS DIODE 5.5VWM 9.5VC 2X2SON
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Zener
- Bidirectional Channels：1
- Voltage - Reverse Standoff (Typ)：5.5V (Max)
- Voltage - Breakdown (Min)：7V
- Voltage - Clamping (Max) @ Ipp：9.5V (Typ)
- Current - Peak Pulse (10/1000µs)：6A (8/20µs)
- Power - Peak Pulse：57W
- Power Line Protection：No
- Applications：HDMI, USB
- Capacitance @ Frequency：0.5pF @ 1MHz
- Operating Temperature：-40°C ~ 150°C (TA)
- Mounting Type：Surface Mount
- Package / Case：0201 (0603 Metric)
- Supplier Device Package：2-X2SON (0.6x0.3)
- Unidirectional Channels：-
- Grade：-
- Qualification：-
Tvs Diodes datasheet and documents for ESD451DPLR
