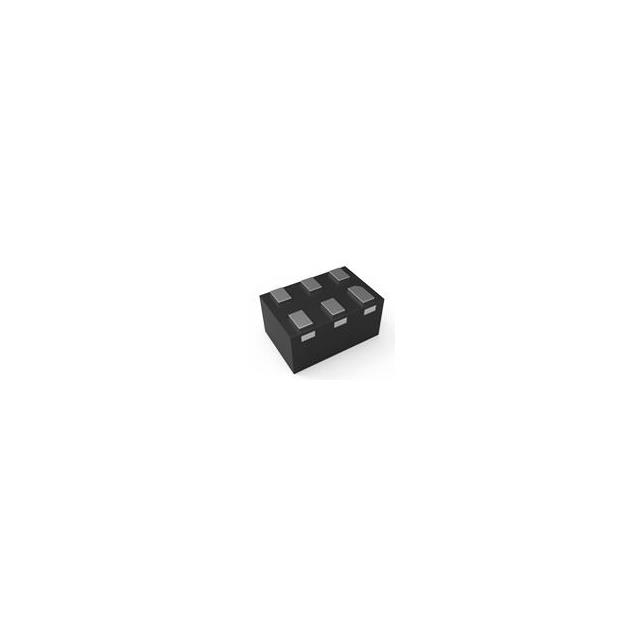

ESDLC0502P6-TP

ESDLC0502P6-TP is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is TVS DIODE 5VWM 15VC DFN16106. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for ESDLC0502P6-TP

• Description：TVS DIODE 5VWM 15VC DFN16106
• Series：-
• Mfr：MCC (Micro Commercial Components)
• Package：Bulk
• Type：Steering (Rail to Rail)
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：15V
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：75W
• Power Line Protection：Yes
• Applications：General Purpose
• Capacitance @ Frequency：0.8pF @ 1MHz (Max)
• Operating Temperature：-55°C ~ 125°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：6-WFDFN
• Supplier Device Package：DFN1610-6
• Unidirectional Channels：2
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for ESDLC0502P6-TP
