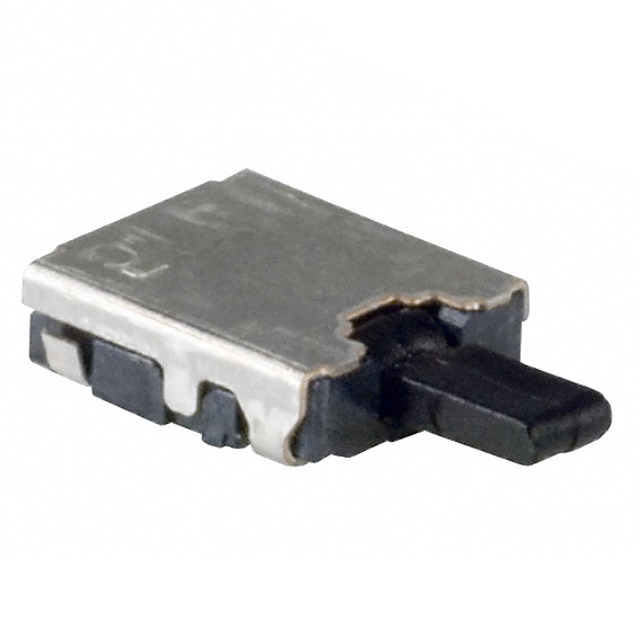

Limit Switches ESE-13H01A product image

ESE-13H01A

$0.54

Description：SWITCH DETECTOR SPST-NO 0.01A 5V
Series：ESE13
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:07d24b2bec3c Category: Limit Switches Brand: Panasonic Electronic Components

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ESE-13H01A is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is SWITCH DETECTOR SPST-NO 0.01A 5V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ESE-13H01A

Description：SWITCH DETECTOR SPST-NO 0.01A 5V
Series：ESE13
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)
Circuit：SPST-NO
Switch Function：Off-Mom
Current Rating (Amps)：10mA (DC)
Voltage Rating - AC：-
Actuator Type：Angled Toggle (Detector)
Mounting Type：Surface Mount, Right Angle
Termination Style：J Lead
Ingress Protection：-
Features：-
Operating Force：30gf
Release Force：-
Operating Position：15°
Pretravel：15°
Differential Travel：-
Overtravel：60°
Operating Temperature：-10°C ~ 60°C
Voltage Rating - DC：5 V

Limit Switches datasheet and documents for ESE-13H01A

ESE-13H01A
