ESM-06-000

Power Line Filter Modules Overview

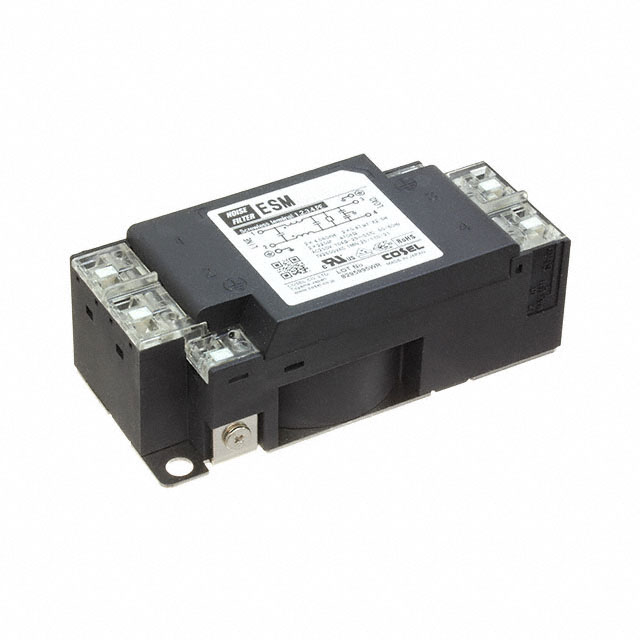

The ESM-06-000 is a single-phase power line filter module manufactured by Cosel USA, Inc. It features a chassis mount configuration with screwless termination for secure electrical connections. The component is rated for 250 VAC and 250 VDC operation with a continuous current capacity of 6 A. Designed as a single-stage EMC/EMI filter, it supports general-purpose applications in power conditioning systems.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount installation style
• Screwless terminal connection method

Power Line Filter Modules Applications

• General purpose power line filtering
• Power conditioning systems
• Industrial equipment noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm compliance standards such as UL, CSA, DIN, or ENEC requirements for your target market. Ensure the chassis mounting dimensions and screwless terminal specifications match your enclosure design constraints before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for noise reduction requirements. The 6 A rating suits moderate load applications. Verify that the screwless termination method aligns with assembly tooling capabilities and that the chassis mount form factor fits the available panel space.

Power Line Filter Modules Part Context

This component belongs to the ES series of power line filters from Cosel. It is designed for AC/DC power input stages where electromagnetic interference suppression is required. The module integrates filtering elements into a compact housing suitable for direct panel integration.

Power Line Filter Modules Replacement Considerations

Cross-reference with other models in the ES series for similar ratings. Verify pinout compatibility and mounting hole patterns if substituting with alternative single-phase filters from different manufacturers.
