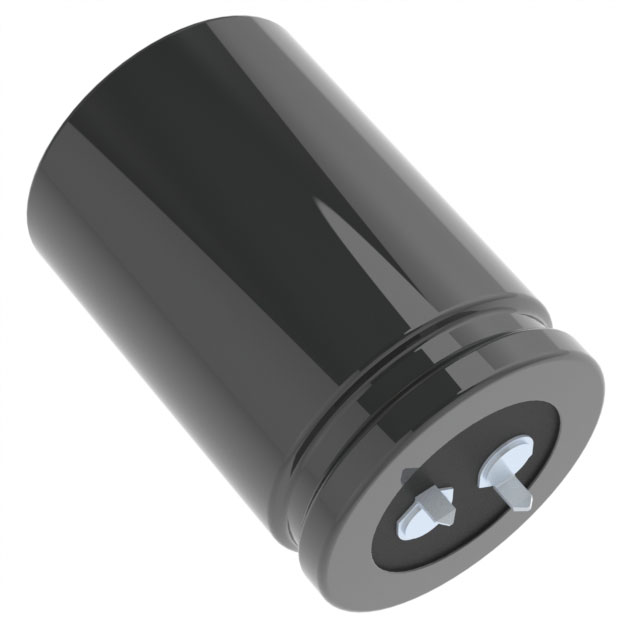

Aluminum Electrolytic Capacitors ESMH201VNN222MA50T product image

ESMH201VNN222MA50T

Description：CAP ALUM 2200UF 20% 200V SNAP TH
Series：SMH
Mfr：Chemi-Con
Package：Bulk

SKU:11f8ced49b5d Category: Aluminum Electrolytic Capacitors Brand: Chemi-Con

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ESMH201VNN222MA50T is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 2200UF 20% 200V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ESMH201VNN222MA50T

Description：CAP ALUM 2200UF 20% 200V SNAP TH
Series：SMH
Mfr：Chemi-Con
Package：Bulk
Capacitance：2200 µF
Tolerance：±20%
Voltage - Rated：200 V
ESR (Equivalent Series Resistance)：113mOhm @ 120Hz
Lifetime @ Temp.：2000 Hrs @ 85°C
Operating Temperature：-25°C ~ 85°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：4.92 A @ 120 Hz
Ripple Current @ High Frequency：7.38 A @ 100 kHz
Lead Spacing：0.394" (10.00mm)
Size / Dimension：1.378" Dia (35.00mm)
Height - Seated (Max)：2.047" (52.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can - Snap-In

Aluminum Electrolytic Capacitors datasheet and documents for ESMH201VNN222MA50T
