ESP-06-681

Power Line Filter Modules Overview

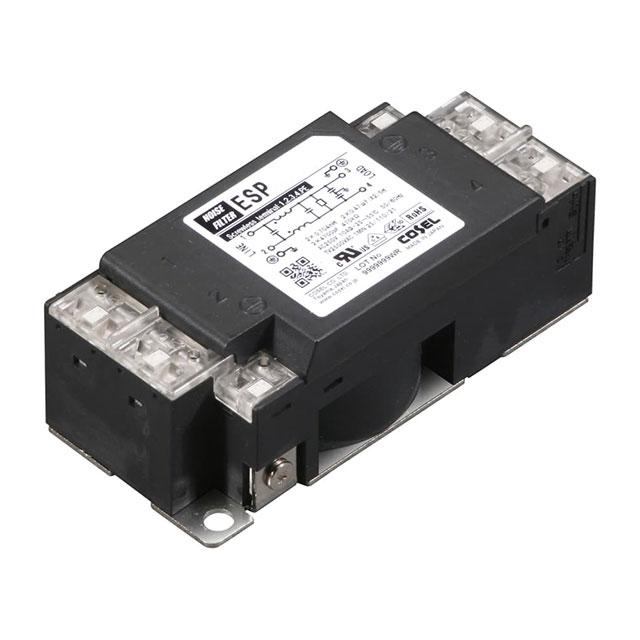

The Cosel ESP-06-681 is a single-phase power line filter designed for EMI/EMC suppression. It features a rated voltage of 250 VAC and 250 VDC with a current rating of 6 A. The unit utilizes screw termination and chassis mount installation. Key electrical parameters include a capacitance of 680 pF and a leakage current of 75.5 uA. It belongs to the EA series and is packaged in bulk.

Power Line Filter Modules Feature Summary

• Single-stage filtering configuration for electromagnetic interference reduction
• Chassis mounting design for secure panel integration
• Screw terminal connections for reliable electrical contact

Power Line Filter Modules Applications

• General purpose power conditioning
• Industrial equipment noise suppression
• Electronic device input protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix requirements against the official datasheet, as variants like ESP-06-681-D exist with different mounting styles. Confirm compliance certifications such as UL, CSA, DIN, and ENEC are required for the target market. Ensure the chassis mount form factor matches the enclosure design constraints before ordering.

Power Line Filter Modules Selection Notes

Select this model when a 6 A capacity is sufficient for the load. Compare with the ESP-06-681-D if DIN rail mounting is preferred over chassis mounting. Verify that the 680 pF capacitance value meets the leakage current limits of the application. Check compatibility with 250 VAC/VDC systems.

Power Line Filter Modules Part Context

This component is part of the Cosel power line filter portfolio, specifically within the EA series. It serves as an EMI filter for single-phase AC/DC lines. The product is manufactured by Cosel USA, Inc. and is categorized under power condition sub-components.

Power Line Filter Modules Replacement Considerations

The ESP-06-681-D is a related variant offering DIN rail mounting instead of chassis mounting. Other models in the series may offer different current ratings or termination types.
