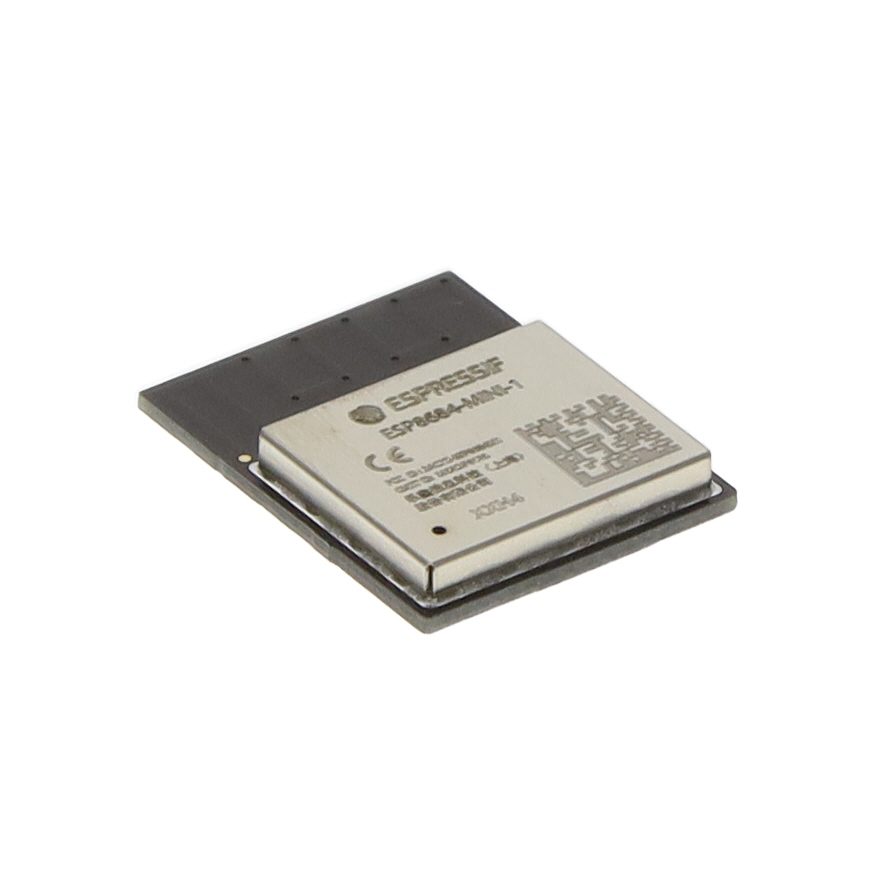

ESP8684-MINI-1-H4

ESP8684-MINI-1-H4

$2.79
  • Description：RF TXRX MOD BT WIFI PCB TH SMD
  • Series：ESP8684
  • Mfr：Espressif Systems
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f2e7d0e5348e Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：RF TXRX MOD BT WIFI PCB TH SMD
  • Series：ESP8684
  • Mfr：Espressif Systems
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • RF Family/Standard：Bluetooth, WiFi
  • Protocol：802.11b/g/n, Bluetooth v5.0
  • Modulation：-
  • Frequency：2.4GHz
  • Data Rate：72.2Mbps
  • Power - Output：21dBm
  • Sensitivity：-106dBm
  • Serial Interfaces：GPIO, I2C, JTAG, PWM, SPI, UART
  • Antenna Type：PCB Trace
  • Utilized IC / Part：ESP8684
  • Memory Size：4MB Flash
  • Voltage - Supply：3V ~ 3.6V
  • Current - Receiving：65mA
  • Current - Transmitting：300mA ~ 370mA
  • Mounting Type：Surface Mount
  • Operating Temperature：-40°C ~ 105°C (TA)
  • Package / Case：61-SMD Module

Download product information
