EST0645T470MDGA

$0.73

Description：FIXED IND 47UH 1.4A 135 MOHM SMD
Series：ES, T Type
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f7a88ce5ba39 Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EST0645T470MDGA is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 47UH 1.4A 135 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for EST0645T470MDGA

Description：FIXED IND 47UH 1.4A 135 MOHM SMD
Series：ES, T Type
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：47 µH
Tolerance：±20%
Current Rating (Amps)：1.2 A
Current - Saturation (Isat)：850mA
Shielding：Shielded
DC Resistance (DCR)：135mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 150°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max)：0.189" (4.80mm)
Features：-

Fixed Inductors datasheet and documents for EST0645T470MDGA

EST0645T470MDGA

Fixed Inductors Overview

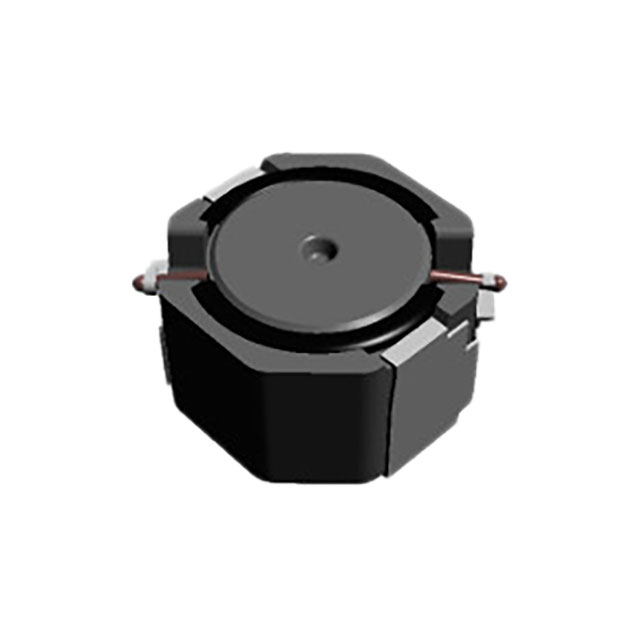

The EST0645T470MDGA is a fixed power inductor from the Taiyo Yuden EST series, designed for surface-mount applications. It features a shielded drum core wirewound construction with ferrite material. The component provides an inductance of 47 µH with a ±20% tolerance. It supports a maximum DC current of 860 mA and has a saturation current (Isat) of 850 mA. The DC resistance (DCR) is 135 mΩ maximum. Operating temperature range spans from -55°C to +150°C. Dimensions are 6.3 mm x 6.0 mm x 4.8 mm.

Fixed Inductors Feature Summary

Shielded magnetic structure minimizes electromagnetic interference.
AEC-Q200 qualified for automotive reliability standards.
High-temperature operation up to 150°C.

Fixed Inductors Applications

Automotive powertrain systems
Automotive safety circuits
General power supply filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix matches the required packaging format, such as tape and reel or cut tape, as availability may vary by distributor. Confirm RoHS3 compliance status and REACH registration details prior to final procurement decisions to ensure regulatory adherence for the target market.

Fixed Inductors Selection Notes

Select this component when shielded inductance is required for automotive-grade environments. Ensure the 850 mA saturation current meets the peak load requirements of the circuit design. Verify that the 135 mΩ DCR aligns with efficiency targets. Consider the 6.3mm x 6.0mm footprint for PCB layout constraints.

Fixed Inductors Part Context

This part belongs to the EST series of SMD power inductors specifically engineered for automotive electronics. The series emphasizes high thermal stability and magnetic shielding to support demanding powertrain and safety applications. It utilizes a robust wirewound architecture on a ferrite core to maintain performance under varying load conditions.
