ET2424-015

Common Mode Chokes Overview

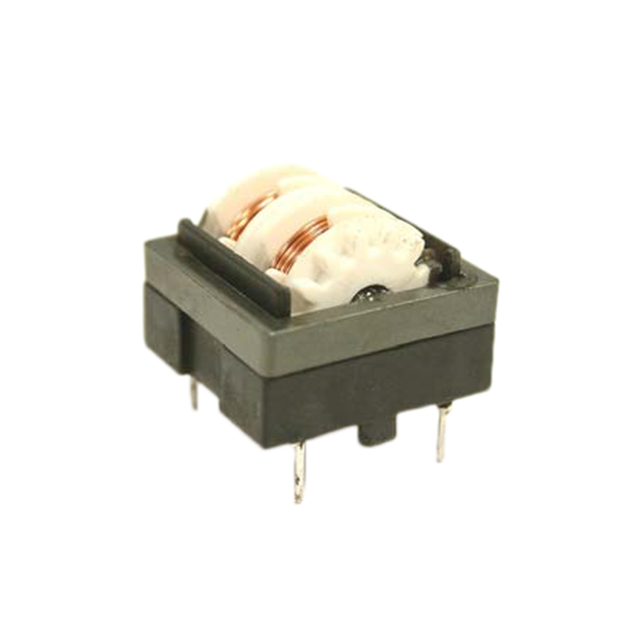

The ET2424-015 is a common mode choke manufactured by Triad Magnetics, designed for power line filtering applications. It features an inductance of 5.2 mH at a test frequency of 10 kHz and supports a maximum DC current of 1.0 A. The component has a maximum DC resistance of 340 mohms and utilizes a through-hole mounting style with four pins. Its physical dimensions are 26 mm in length, 26 mm in width, and 24 mm in height. The unit operates within a temperature range of -20°C to +105°C and holds CSA, IEC, and UL certifications.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for single-phase AC power lines
• Supports high saturation current capability for stable operation under load
• Features robust construction suitable for chassis or panel mounting environments

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Audio/Video signal line protection

Common Mode Chokes Procurement Notes

Verify the specific inductance value of 5.2 mH and current rating of 1.0 A against design requirements. Confirm that the through-hole package dimensions fit the PCB layout. Ensure compliance with relevant safety standards such as UL, CSA, and IEC for the target market. Check RoHS status if environmental regulations apply.

Common Mode Chokes Selection Notes

Select this component when a 5.2 mH inductance is required for common mode noise reduction at currents up to 1.0 A. Consider the 340 mohms DCR for voltage drop calculations. The 26x26x24 mm footprint must be accommodated in the mechanical design. Verify thermal performance at the maximum operating temperature of +105°C.

Common Mode Chokes Part Context

This part belongs to the ET series of common mode chokes from Triad Magnetics. The series offers various inductance and current ratings for different power line filtering needs. The ET2424-015 specifically targets applications requiring moderate inductance with a 1 A current capacity.

Common Mode Chokes Replacement Considerations

The ET2424-017 is a similar common mode choke from the same manufacturer but offers 3.2 mH inductance and a 2 A current rating. Verify if the higher current capacity and lower inductance meet the circuit requirements before substitution.
