ET47AGBNA

$7.01

Description：DIPOLE ANTENNA
Series：-
Mfr：Airgain
Package：Bag

SKU:54712e74d5d5 Category: RF Antennas Brand: Airgain

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ET47AGBNA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is DIPOLE ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ET47AGBNA

Description：DIPOLE ANTENNA
Series：-
Mfr：Airgain
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Ultra Wide Band
Frequency (Center/Band)：-
Frequency Range：703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Antenna Type：Whip, Straight
Number of Bands：4
VSWR：-
Return Loss：-
Gain：-0.2dBi, 1.9dBi, 3.5dBi, 3.7dBi, 1.5dBi, 2.4dBi, 2.6dBi, 4.7dBi, 5.6dBi
Features：-
Termination：SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：8.106" (205.90mm)
Applications：Cellular, LTE
Power - Max：-

Antennas RF datasheet and documents for ET47AGBNA

ET47AGBNA

Antennas RF Overview

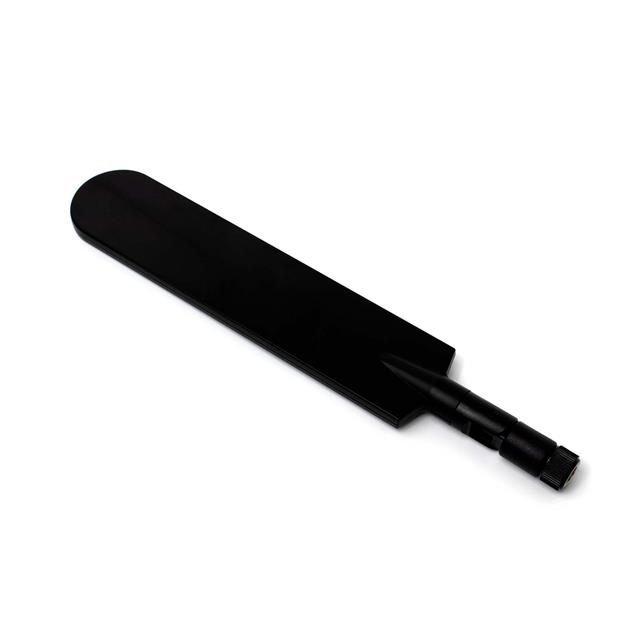

The Airgain ET47AGBNA is an indoor cellular antenna designed for 4G LTE connectivity. It operates across a frequency range of 699 MHz to 2.7 GHz, supporting multiple bands including LTE and GSM. The unit features a rotatable design on a base hinge, allowing for precise signal optimization. It utilizes an SMA connector for interface and is finished in black. This component provides reliable wireless connection solutions for enterprise and IoT environments.

Antennas RF Feature Summary

Rotatable design on a base hinge for precise signal alignment
Supports 4G LTE cellular frequencies from 699 MHz to 2.7 GHz
Indoor application with durable black finish

Antennas RF Applications

Enterprise wireless networks
IoT environments requiring reliable connectivity
Public safety communication systems

Antennas RF Procurement Notes

Verify the specific part number ET47AGBNA against official Airgain documentation to confirm the SMA connector type and frequency specifications. Ensure the intended application matches the indoor usage classification. Cross-reference technical parameters with the manufacturer's datasheet to validate performance requirements before procurement.

Antennas RF Selection Notes

Select this model when indoor 4G LTE coverage requires adjustable signal directionality. The rotatable hinge allows for fine-tuning reception in fixed installations. Consider the SMA interface compatibility with existing modem or router equipment. Verify that the 699-2.7 GHz range covers the necessary carrier bands for the deployment area.

Antennas RF Part Context

Airgain specializes in advanced antenna technology for mobile, automotive, and industrial applications. The ET47AGBNA belongs to their cellular antenna portfolio, focusing on providing high-performance connectivity for enterprise and public safety sectors. The brand emphasizes reliability and optimized wireless solutions for complex connectivity challenges.
