ET56AGBJA

$9.14

Description：DIPOLE ANTENNA
Series：-
Mfr：Airgain
Package：Bag

SKU:5f1aefd111ea Category: RF Antennas Brand: Airgain

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ET56AGBJA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is DIPOLE ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ET56AGBJA

Description：DIPOLE ANTENNA
Series：-
Mfr：Airgain
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Ultra Wide Band
Frequency (Center/Band)：-
Frequency Range：617MHz ~ 6GHz
Antenna Type：Dipole Antenna
Number of Bands：9
VSWR：-
Return Loss：-
Gain：1.1dBi, 0.7dBi, 2.3dBi, 1.6dBi, 2.5dBi, 2.2dBi, 2.6dBi, 2.7dBi, 3.5dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：0.512" (13.00mm)
Applications：2G, 3G, 4G, 5G, CDMA, DCS, GSM, IoT, LTE, M2M, PCS
Power - Max：-

Antennas RF datasheet and documents for ET56AGBJA

ET56AGBJA

Antennas RF Overview

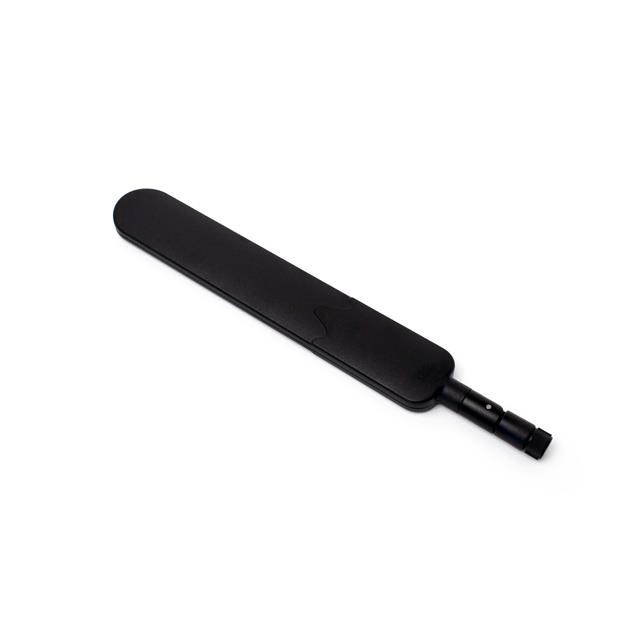

The Airgain ET56AGBJA is an indoor cellular antenna designed for frequencies ranging from 617MHz to 6GHz. It supports multiple wireless standards including 2G, 3G, 4G, and 5G. The component utilizes a dipole antenna style with an SMA male connector for mounting. It features a rotatable base hinge mechanism and is finished in black. The unit has a maximum height of 0.512 inches (13.00mm). Gain values vary across bands, specifically listed as 1.1dBi, 0.7dBi, 2.3dBi, 1.6dBi, 2.5dBi, 2.2dBi, 2.6dBi, 2.7dBi, and 3.5dBi.

Antennas RF Feature Summary

Supports multi-band cellular communication protocols including LTE and 5G
Features a rotatable base hinge for directional adjustment
Utilizes a dipole antenna design for signal capture

Antennas RF Applications

IoT connectivity solutions
M2M communication systems
Indoor cellular signal enhancement

Antennas RF Procurement Notes

Verify the specific datasheet version for accurate electrical parameters before integration. Confirm that the SMA male connector interface matches the host device requirements. Ensure the indoor application environment aligns with the product specifications. Check regional availability status as distribution may be limited in certain areas.

Antennas RF Selection Notes

Select this model when a compact indoor solution for broad cellular frequency coverage is required. The rotatable hinge allows for precise orientation without complex mounting hardware. Consider the varying gain figures across different frequency bands during system planning. Verify compatibility with existing SMA-based infrastructure.

Antennas RF Part Context

This component belongs to the Airgain external antenna catalog. It is categorized under RF antennas and dipole types. The product is intended for commercial and industrial use cases requiring reliable cellular data transmission. It serves as a specialized hardware element for network connectivity expansion.

Antennas RF Replacement Considerations

Consult official Airgain documentation for direct substitute part numbers. Cross-reference frequency ranges and connector types when evaluating alternatives. Ensure any replacement maintains the required indoor form factor and mounting style.
