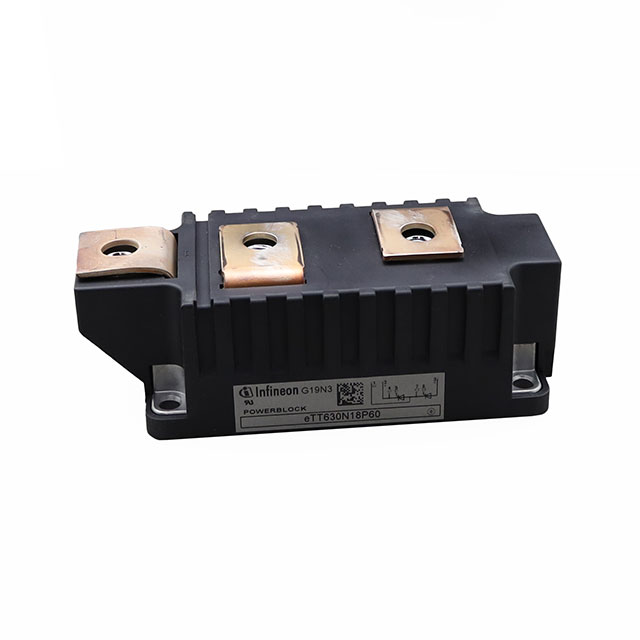

ETT630N18P60HPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：60 MM THYRISTOR/THYRISTOR MODULE
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：628 A
- Current - On State (It (RMS)) (Max)：700 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：20000A @ 50Hz
- Operating Temperature：-40°C ~ 135°C (TC)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The Infineon ETT630N18P60HPSA1 is a phase control thyristor module utilizing pressure contact technology and Advanced Medium Power Technology (AMPT). It features an electrically insulated base plate within an industrial standard package. Key electrical parameters include a repetitive peak forward and reverse voltage of 1800 V, a maximum average on-state current of 628 A at TC=85°C, and a surge current rating of 20000 A. The device has a threshold voltage of 0.8 V, slope resistance of 0.341 mΩ, and a thermal resistance from junction to case of 0.0575 K/W per arm under DC conditions.
Feature Summary
- Pressure contact technology ensures high reliability and robust mechanical connection.
- Advanced Medium Power Technology (AMPT) optimizes performance for medium power applications.
- Electrically insulated base plate provides safety isolation in Class 1 installations.
Applications
- Soft starters
- Rectifiers for drive applications
- Crowbar applications
- Power controllers
- Static switches
Procurement Notes
Verify the specific ordering suffix HPSA1 against the manufacturer's short form catalog to confirm exact configuration details. Ensure compatibility with mounting torque specifications: 6 Nm for mechanical connections and 12 Nm for electrical terminals. Confirm that the application environment remains within the specified operating temperature range of -40°C to +135°C.
Selection Notes
Select this module for high-current phase control applications requiring reliable switching. Consider the thermal resistance values when designing heatsinking solutions. Evaluate the critical rate of rise of on-state current (diT/dt) and off-state voltage (dvD/dt) limits to ensure proper gate drive circuitry and snubber design are implemented for stable operation.
Part Context
This component belongs to the Eco Block series of network thyristor modules. It is designed for use in industrial power electronics where high current handling and robust packaging are required. The module integrates silicon pellets with internal insulation to facilitate safe installation in various power conversion topologies.
Replacement Considerations
Consult the official short form catalog for direct replacements. Verify that any substitute part matches the 1800 V blocking voltage, 628 A average current rating, and 60 mm base plate dimensions to ensure mechanical and electrical compatibility.
FAQ
What is the maximum allowable case temperature?
The maximum allowable case temperature is 135°C, which corresponds to the maximum junction temperature limit.
What is the insulation test voltage rating?
The insulation test voltage is 3.0 kV RMS for 1 minute or 3.6 kV RMS for 1 second at 50 Hz.
What is the typical turn-off time?
The typical circuit commutated turn-off time (tq) is 270 µs under specified test conditions.
