EV20-0.8-02-5M6

$1.92

Description：CMC 5.6MH 800MA 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:99c159d49f9a Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5.6MH 800MA 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：800mA
DC Resistance (DCR) (Max)：245mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max)：1.024" (26.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5.6 mH @ 400 Hz

Download product information

EV20-0.8-02-5M6

Overview

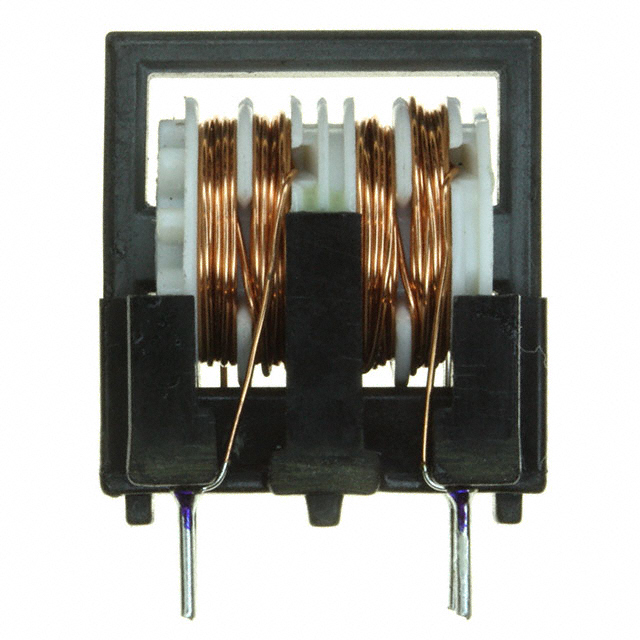

The Schaffner EV20-0.8-02-5M6 is a vertical common mode inductor from the EV2 series, designed for through-hole mounting. It provides an inductance of 5.6 mH at a test frequency of 400 Hz with a maximum DC resistance and a rated current of 0.8 A. The component features two leads and is engineered to suppress electromagnetic interference in single-phase circuits.

Feature Summary

Vertical leaded construction for standard printed circuit board integration
Common mode choke functionality for noise suppression
Through-hole termination style for secure mechanical attachment

Applications

Power supply input filtering
Electromagnetic interference suppression in electronic equipment
Signal integrity protection in low-current AC/DC conversion stages

Procurement Notes

Verify the specific suffix codes against official Schaffner documentation to ensure correct inductance and current ratings. Confirm that the vertical package orientation matches the target PCB footprint requirements. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Selection Notes

Select this component when a 5.6 mH inductance value is required for common mode noise reduction in applications handling up to 0.8 A. Ensure the design accommodates the vertical mounting profile and through-hole assembly process. Evaluate thermal performance constraints relative to the specified current rating during continuous operation.

Part Context

This component belongs to the Schaffner EV2 series of common mode chokes, which are specialized for general-purpose electromagnetic interference filtering. The series offers various inductance and current combinations tailored for different power levels. The EV20 variant specifically addresses lower current applications requiring moderate noise attenuation capabilities.
