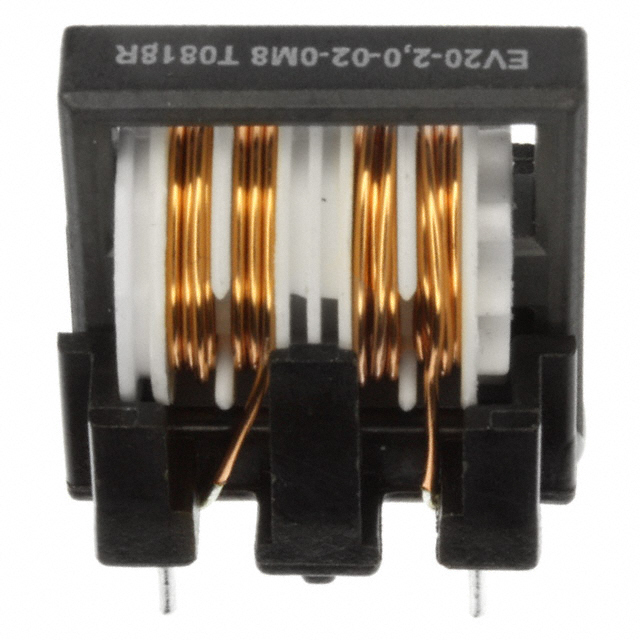

EV20-2.0-02-0M8

$1.95

Description：CMC 820UH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:e2cd43beb320 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 820UH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：38mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max)：1.024" (26.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：820 µH @ 400 Hz

Download product information

EV20-2.0-02-0M8

Overview

The EV20-2.0-02-0M8 is a common mode choke from the EH/EV series manufactured by TE Connectivity Schaffner. It features a ferrite core and through-hole PCB mounting with a channel count of one. The component has an inductance of 820 uH, a tolerance of 15%, and a maximum DC current rating of 2 A. Its maximum DC resistance is 38 mOhms. The operating temperature range spans from -25 C to +100 C. Physical dimensions are 21 mm x 21 mm x 17.8 mm. It is unshielded and tested at 10 kHz.

Feature Summary

Provides common mode suppression for electromagnetic interference
Utilizes a ferrite core for magnetic performance
Designed for printed circuit board mounting via through-hole termination

Applications

EMC/RFI filtering in electronic circuits
Signal line noise suppression
General purpose EMI suppression

Procurement Notes

Verify the manufacturer part number against official TE Connectivity Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical parameters and mechanical footprint. Check RoHS compliance status directly from the datasheet as regulatory requirements may vary by region or revision date.

Selection Notes

Select this component when a single-channel common mode choke with 2 A current handling is required for PCB integration. Ensure the 820 uH inductance meets the target frequency attenuation needs. Verify that the through-hole package fits the available board space and that the thermal characteristics align with the operational environment constraints.

Part Context

This component belongs to the EH/EV series of EMC components produced by TE Connectivity Schaffner. These parts are designed for general electromagnetic compatibility applications. The series offers various ratings to suit different current and voltage requirements within electronic systems.

Replacement Considerations

Check for direct substitutes within the same EH/EV series family. Verify equivalent inductance, current rating, and physical dimensions before substitution. Consult official cross-reference lists for confirmed compatible alternatives.
