EV24-0.5-02-44M

Overview

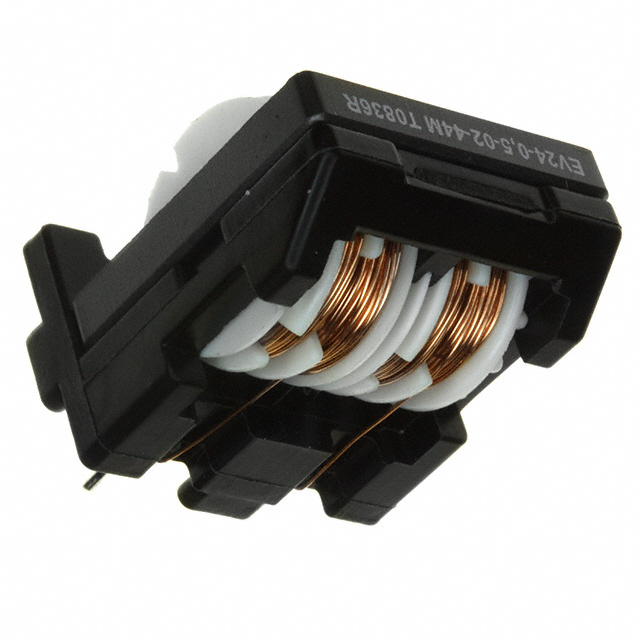

The EV24-0.5-02-44M is a common mode choke manufactured by Schaffner EMC Inc., designed for through-hole mounting on printed circuit boards. It features an inductance of 44 mH and supports a maximum DC current of 500 mA. The component operates within a temperature range of -25°C to +100°C and utilizes a vertical package with two leads.

Feature Summary

• Provides common mode noise suppression for signal lines
• Supports through-hole PCB integration
• Operates reliably across extended industrial temperature ranges

Applications

• Signal line filtering in embedded communication systems
• Noise reduction in data transmission circuits
• Electromagnetic interference suppression in electronic modules

Procurement Notes

Verify the manufacturer designation, as the model appears associated with Schaffner EMC Inc. in public listings but may be distributed under TE Connectivity branding. Confirm RoHS compliance status and datasheet availability directly from authorized suppliers before procurement.

Selection Notes

Select this component when a high-inductance common mode choke is required for low-current signal lines. Ensure the PCB layout accommodates the through-hole vertical package dimensions and that the operating current does not exceed the 500 mA rating.

Part Context

This part belongs to the EV24 series of common mode chokes, which are characterized by their vertical through-hole construction and ferrite core materials. The series offers various inductance values tailored for different noise suppression requirements in compact electronic designs.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material.
