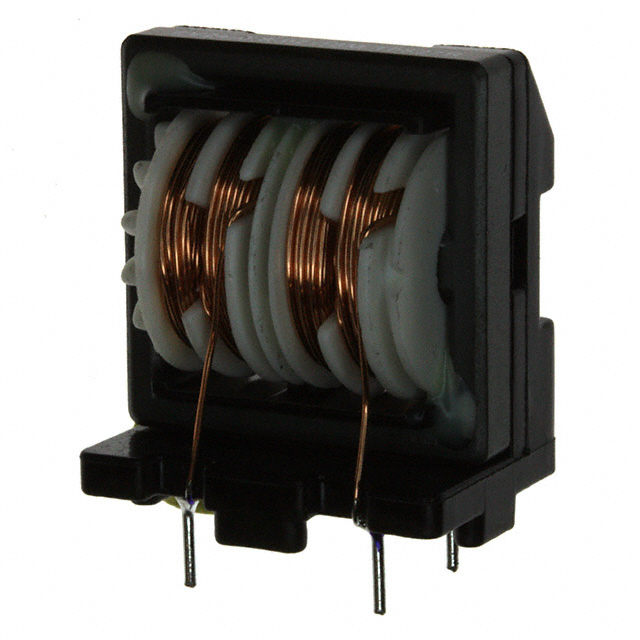

EV24-0.8-02-18M

$2.41

Description：CMC 18MH 800MA 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:980a816b0a62 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 18MH 800MA 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：800mA
DC Resistance (DCR) (Max)：438mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max)：1.185" (30.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：18 mH @ 10 kHz

Download product information

EV24-0.8-02-18M

Overview

The EV24-0.8-02-18M is a two-line common mode choke manufactured by TE Connectivity Schaffner. It features an inductance of 18 mH at 10 kHz and a current rating of 800 mA. The typical direct current resistance (DCR) is 438 mOhm. This component utilizes through-hole mounting technology for integration into electronic circuits.

Feature Summary

Provides common mode noise suppression for two-line configurations
Designed for through-hole board mounting applications
Engineered for stable operation in embedded communication systems

Applications

Embedded communication applications
General EMI/RFI suppression in electronic circuits

Procurement Notes

Verify the manufacturer designation, as this part is produced under TE Connectivity Schaffner. Confirm that the specific 18 mH inductance and 800 mA current ratings align with your circuit requirements. Ensure compatibility with through-hole assembly processes and verify RoHS compliance status for regulatory adherence.

Selection Notes

Select this component when a high-inductance common mode choke is required for low-current signal lines. The 18 mH value offers significant attenuation for common mode noise. Consider the 438 mOhm DCR impact on voltage drop. The through-hole package dictates the PCB layout and mounting constraints compared to surface-mount alternatives.

Part Context

This component belongs to the EV series of RFI suppression chokes from Schaffner EMC. These devices are designed for general-purpose electromagnetic interference filtering. The product line supports various inductance and current combinations to suit different power and signal integrity needs across industrial and consumer electronics.
