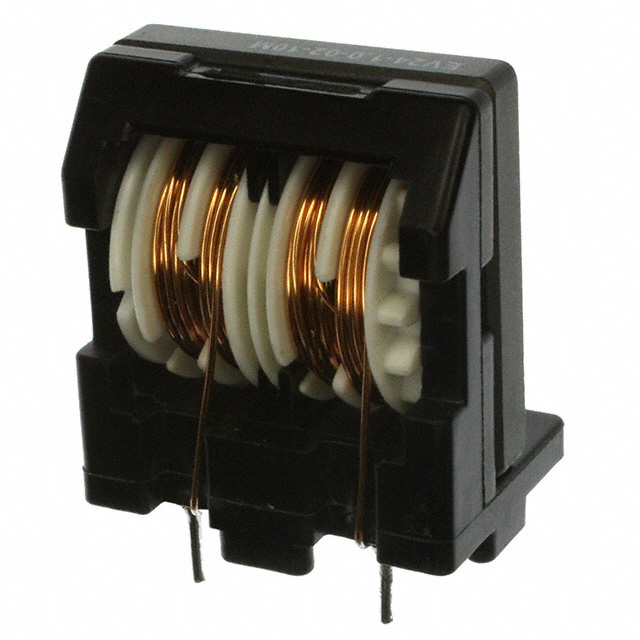

EV24-1.0-02-10M

$2.42

Description：CMC 10MH 1A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:c8e73e4ec99c Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10MH 1A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：244mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max)：1.185" (30.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：10 mH @ 400 Hz

Download product information

EV24-1.0-02-10M

Overview

The EV24-1.0-02-10M is a common mode choke manufactured by TE Connectivity / Schaffner. It features an inductance of 10 mH and a current rating of 2 A. The component utilizes through-hole termination for chassis or panel mounting applications. Its physical dimensions are approximately 58 mm in length, 45.6 mm in width, and 45.6 mm in height, with a unit weight of 400 g. The device operates within a temperature range of -25°C to +100°C and is designed for single-phase power line filtering.

Feature Summary

Provides common mode noise suppression for single-phase AC/DC circuits
Utilizes high saturation resistance core material for effective interference reduction
Designed for direct chassis or panel mounting via terminal block connections

Applications

Power supply input stages
Battery charger circuits
Portable electronic devices requiring EMI mitigation

Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact electrical tolerances and terminal configurations. Ensure the procurement channel provides valid RoHS compliance declarations. Cross-reference the manufacturer part number with authorized distributor databases to confirm current availability status and lead times prior to ordering.

Selection Notes

Select this component when a 10 mH inductance value is required for common mode noise attenuation in single-phase systems. Confirm that the 2 A current rating aligns with the maximum load requirements of the target circuit. Verify that the physical footprint and mounting style are compatible with the enclosure design constraints.

Part Context

This component belongs to the EV series of common mode chokes from Schaffner EMC. These devices are engineered for RFI suppression in various electronic equipment. The EV series typically offers high saturation characteristics and is suitable for applications demanding reliable electromagnetic compatibility performance in compact form factors.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source data. Consult official manufacturer substitution guides for verified alternatives.
