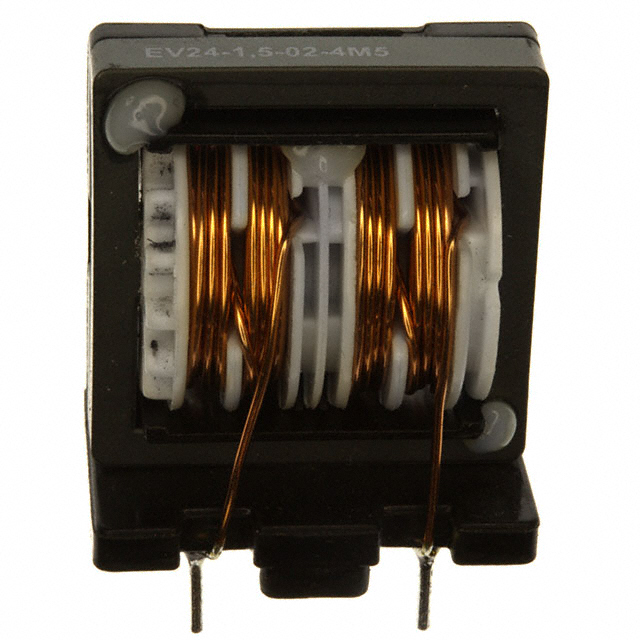

EV24-1.5-02-4M5

$2.42

Description：CMC 4.5MH 1.5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:837400e15978 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 4.5MH 1.5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：116mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max)：1.185" (30.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：4.5 mH @ 400 Hz

Download product information

EV24-1.5-02-4M5

Overview

The Schaffner EV24-1.5-02-4M5 is a vertical through-hole common mode choke designed for EMI suppression in electronic circuits. It features an inductance of 4.5 mH and supports a maximum DC current of 1.5 A. The component has a maximum DC resistance of 70 mΩ and operates within a temperature range of -40°C to +100°C. Measuring 18 mm x 12.5 mm x 20 mm, it utilizes a ferrite core and is tested at 10 kHz.

Feature Summary

Vertical PCB mount configuration for space-efficient integration
Ferrite core construction for effective high-frequency noise attenuation
Through-hole termination style ensuring robust mechanical stability

Applications

Power supply input filtering
Medical device EMC compliance
Industrial control circuit protection

Procurement Notes

Verify the manufacturer designation as TE Connectivity / Schaffner or Schaffner EMC Inc. during sourcing. Confirm the specific part number EV24-1.5-02-4M5 matches the required 4.5 mH inductance and 1.5 A current rating. Ensure the vertical package dimensions align with the target PCB layout constraints before finalizing procurement orders.

Selection Notes

Select this component when vertical mounting is required for common mode noise reduction in compact assemblies. It is suitable for applications demanding stable performance across a wide temperature range from -40°C to +100°C. Consider its 1.5 A current handling capability and low DC resistance for efficient power line filtering without significant voltage drop.

Part Context

This component belongs to the EV series of common mode chokes from Schaffner, specialized for electromagnetic interference suppression. The series offers various inductance and current ratings tailored for different power levels. As a product of TE Connectivity / Schaffner, it adheres to industry standards for EMC components used in sensitive electronic environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by matching inductance, current rating, and physical dimensions if considering alternative vendors.
