EV24-2.0-02-2M5

$2.44

Description：CMC 2.5MH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:02126944d075 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.5MH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：62mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max)：1.185" (30.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 10 kHz

Download product information

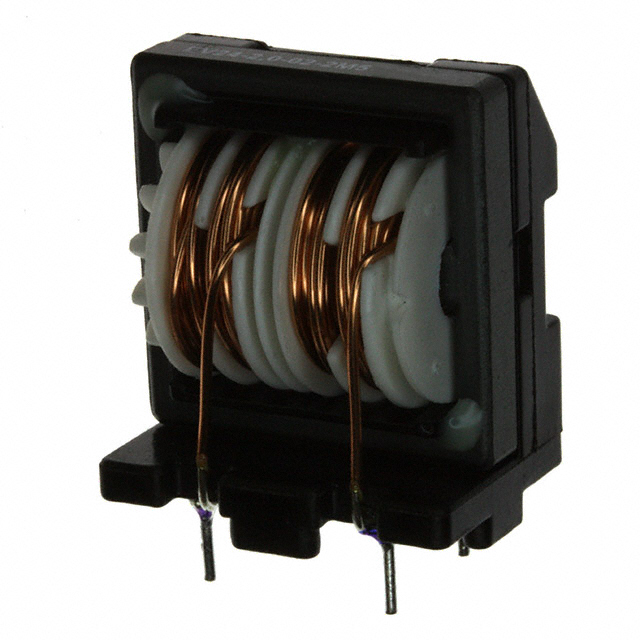

EV24-2.0-02-2M5

Overview

The EV24-2.0-02-2M5 is a common mode choke from the EH series by Schaffner EMC Inc., designed for PCB mounting via through-hole termination. It features a ferrite core and operates within a temperature range of -25°C to +100°C. The component has an inductance of 2.5 mH with a 15% tolerance, rated for a maximum DC current of 2 A and a maximum DC resistance of 62 mOhms. Measuring 24 mm x 24 mm x 20 mm, it is unshielded and tested at 10 kHz.

Feature Summary

Current compensated design utilizing a ferrite core for effective electromagnetic interference suppression
Through-hole PCB mounting configuration for secure mechanical attachment
Unshielded construction suitable for standard industrial environments

Applications

Power supply input filtering
Battery charger circuits
Portable electronic devices
Energy-efficient systems

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your circuit requirements. Confirm that the through-hole package dimensions and pin spacing match your PCB layout. Check for any recent product change notices or material updates that may affect performance or compliance status before finalizing procurement decisions.

Selection Notes

Select this component when a 2.5 mH inductance and 2 A current rating are required for common mode noise reduction. Ensure the operating environment stays within the specified -25°C to +100°C range. Consider the physical footprint of 24 mm x 24 mm x 20 mm during board space allocation. Verify that the unshielded nature does not interfere with nearby sensitive components.

Part Context

This component belongs to the EH series of common mode chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose electromagnetic interference suppression in various electronic applications. The EV24-2.0-02-2M5 variant specifically offers 2.5 mH inductance and 2 A current handling capability.
