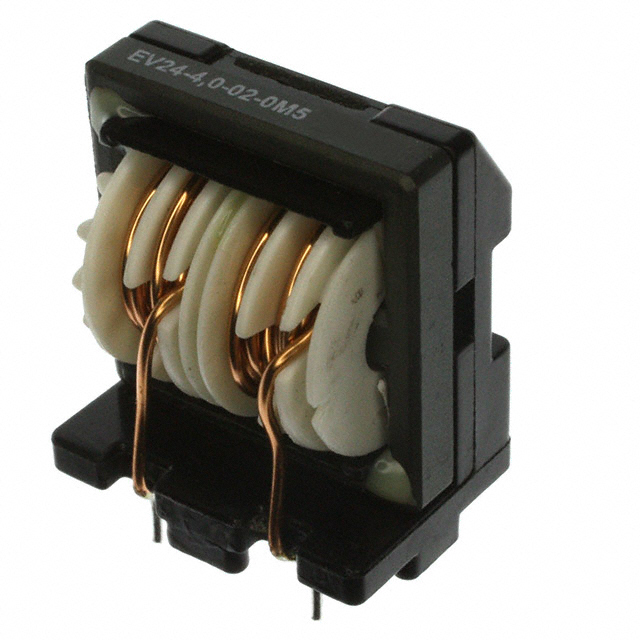

EV24-4.0-02-0M5

$2.49

Description：CMC 500UH 4A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:bc93e51685bc Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 500UH 4A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：16mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max)：1.185" (30.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：500 µH @ 400 Hz

Download product information

EV24-4.0-02-0M5

Overview

The Schaffner EMC Inc. EV24-4.0-02-0M5 is a common mode choke designed for radio frequency interference suppression. It features a vertical through-hole mounting style with a four-pin configuration. The component operates within a temperature range of -25°C to +100°C and provides an inductance of 500 µH at a rated current of 4 A.

Feature Summary

Vertical through-hole construction for secure PCB integration
Common mode noise suppression capability
High saturation resistance characteristics

Applications

Power supply input filtering
Battery charger circuits
Portable electronic device protection

Procurement Notes

Verify the specific manufacturer part number against official Schaffner documentation to ensure compatibility. Confirm that the vertical pin configuration matches your printed circuit board layout requirements. Check for any recent product change notices regarding packaging or material composition before finalizing procurement orders.

Selection Notes

Select this component when vertical mounting space is available and a 4 A current rating is required. Ensure the operating environment stays within the specified -25°C to +100°C range. Verify that the 500 µH inductance value meets the specific noise attenuation needs of the target application circuit.

Part Context

This component belongs to the EV series of common mode suppression chokes from Schaffner EMC. These devices are engineered for general electromagnetic interference reduction in low to medium power applications. The series offers reliable performance for protecting sensitive electronics from conducted noise disturbances.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source data. Consult official manufacturer cross-reference lists for verified alternatives.
