EV28-1.0-02-36M

Overview

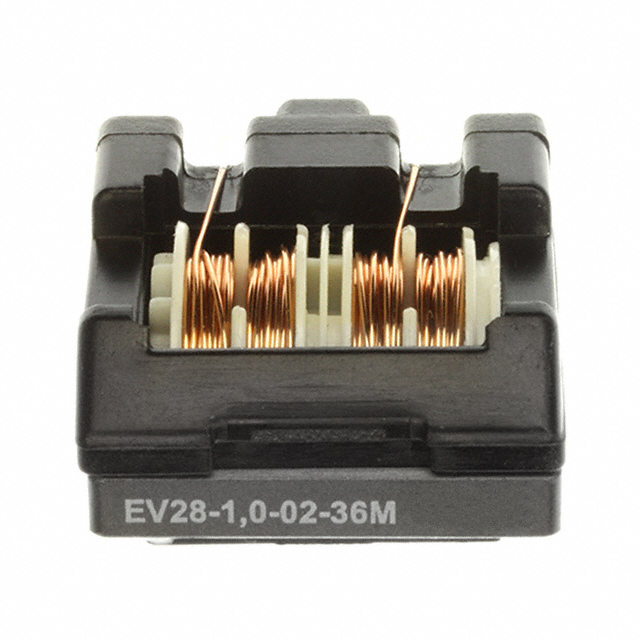

The EV28-1.0-02-36M is a vertical common mode choke manufactured by Schaffner EMC Inc. It features an inductance of 36 mH and a rated current of 1 A. Designed for through-hole mounting, this single-phase EMI filter operates within a temperature range of -25 °C to +100 °C. The component has physical dimensions of 28.0 mm length, 28.0 mm width, and 22.9 mm height. It supports a rated voltage of 250 V and withstands a high potential of 2000 V. The device is compliant with RoHS standards and holds UL certification.

Feature Summary

• Vertical common mode suppression design for single-phase applications
• Through-hole termination style for secure board integration
• UL certified for safety compliance
• RoHS compliant construction

Applications

• Single-phase EMI filtering
• Power supply input stages
• Electromagnetic interference suppression in electronic equipment

Procurement Notes

Verify the specific part number EV28-1.0-02-36M against official Schaffner documentation to confirm availability and specifications. Ensure that the required inductance value of 36 mH and current rating of 1 A match your circuit design requirements. Check for any specific packaging or reel options if applicable to your manufacturing process. Confirm compliance with relevant regional regulations such as RoHS before finalizing procurement orders.

Selection Notes

Select this component when a 36 mH inductance is required for common mode noise reduction in single-phase circuits. The 1 A current rating suits low-to-medium power applications. Consider the through-hole mounting requirement and vertical form factor for PCB layout constraints. Verify that the operating temperature range of -25 °C to +100 °C meets environmental conditions. Ensure the 250 V rated voltage is sufficient for the system's electrical isolation needs.

Part Context

This component belongs to the EV28 series of common mode chokes from Schaffner EMC Inc. The series offers various inductance and current combinations tailored for EMI suppression. The EV28 series is characterized by its vertical construction and through-hole compatibility, making it suitable for standard PCB assembly processes. It serves as a passive filter element to attenuate electromagnetic interference in power lines.

Replacement Considerations

Direct substitutes must match the 36 mH inductance, 1 A current rating, and through-hole vertical package. Verify equivalent electrical parameters and physical dimensions to ensure fitment. Consult Schaffner's official cross-reference guides for approved alternative part numbers within the EV28 series or other compatible families.
