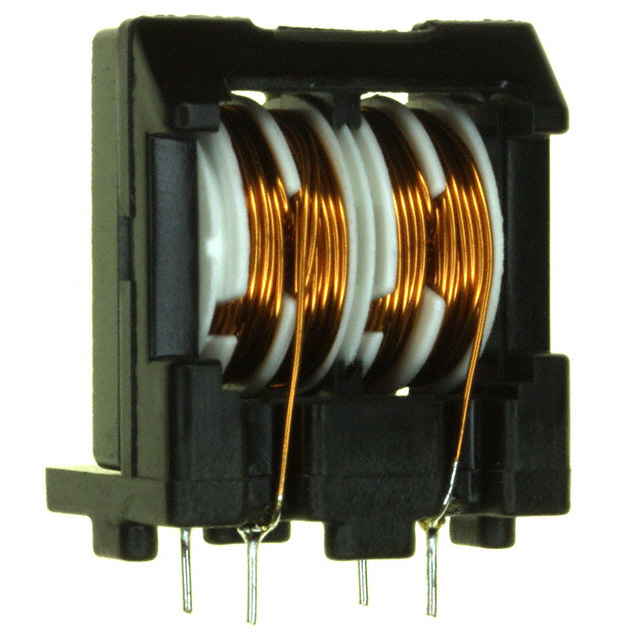

EV28-1.5-02-20M

$3.20

Description：CMC 20MH 1.5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1d910adee730 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 20MH 1.5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：282mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)：1.406" (35.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：20 mH @ 400 Hz

Download product information

EV28-1.5-02-20M

Overview

The EV28-1.5-02-20M is a common mode choke manufactured by Schaffner EMC Inc., designed for power line filtering applications. It features a 20 mH inductance measured at 400 Hz and supports a maximum current rating of 1.5 A. The component utilizes through-hole PCB termination with two lines. Its physical dimensions are optimized for vertical mounting, ensuring reliable performance within electronic systems requiring electromagnetic interference suppression.

Feature Summary

Provides effective common mode noise attenuation for power line applications
Utilizes ferrite core technology for high inductance stability
Designed for vertical PCB mounting via through-hole termination

Applications

CAT scanners
Defibrillators
Laboratory equipment
X-ray equipment

Procurement Notes

Verify the specific manufacturer part number against official Schaffner documentation to ensure authenticity. Confirm that the required inductance value and current rating align with the target circuit design specifications before procurement. Ensure compatibility with the intended PCB layout and mounting orientation requirements.

Selection Notes

Select this component when designing medical or laboratory equipment requiring robust EMI suppression. The 1.5 A current rating and 20 mH inductance make it suitable for sensitive diagnostic devices. Verify that the through-hole mounting style fits the assembly constraints and that the operating temperature range meets environmental requirements.

Part Context

This component belongs to the Schaffner EMC series of filters and chokes. These products are engineered to meet stringent electromagnetic compatibility standards. The EV28 series specifically targets applications where space efficiency and reliable noise reduction are critical for maintaining signal integrity in sensitive electronic environments.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Cross-reference electrical parameters such as inductance, current rating, and DC resistance to ensure functional equivalence. Verify mechanical dimensions and mounting style compatibility before substituting.
