EV28-2.0-02-11M

$3.24

Description：CMC 11MH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:5ae37663ea1f Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 11MH 2A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：162mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)：1.406" (35.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：11 mH @ 400 Hz

Download product information

EV28-2.0-02-11M

Overview

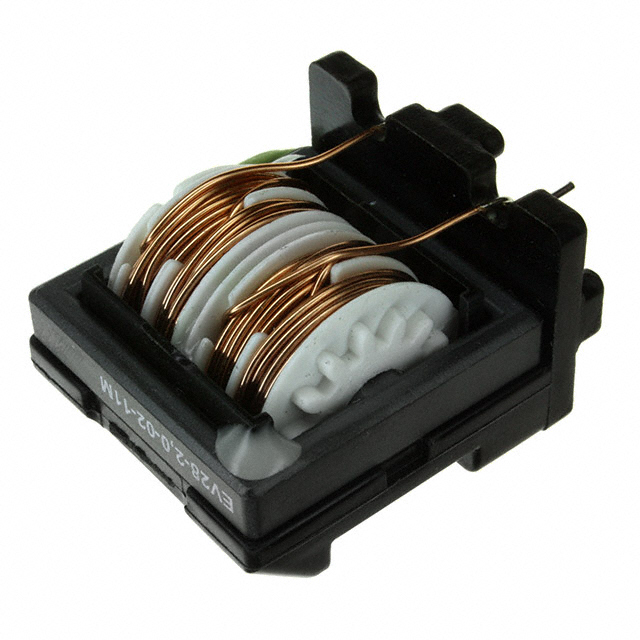

The Schaffner EV28-2.0-02-11M is a vertical common mode choke designed for electromagnetic interference suppression in electronic circuits. It features radial termination and delivers an inductance of 11 mH with a tolerance of ±30%. The component supports a maximum current rating of 2.0 A and exhibits a maximum DC resistance of 100 mOhms. It operates within a temperature range of -25°C to +100°C. Physical dimensions include a length of 29.2 mm, width of 21 mm, and height of 34.7 mm.

Feature Summary

Vertical common mode suppression architecture
Radial leaded termination style
High inductance value for effective noise filtering

Applications

Power supply input filtering
Industrial equipment EMI suppression
Consumer electronics noise reduction

Procurement Notes

Verify the specific part number against official Schaffner documentation to confirm electrical ratings and mechanical specifications. Ensure compatibility with target PCB layout and thermal requirements. Cross-reference datasheet values for inductance, current handling, and resistance before integration into design.

Selection Notes

Select this component based on required inductance levels and current capacity for common mode noise applications. Consider physical size constraints due to vertical mounting profile. Verify operating temperature range suitability for the intended environment and ensure termination style matches assembly processes.

Part Context

This component belongs to the Schaffner EV28 series of common mode chokes. These components are engineered for vertical mounting on printed circuit boards. They provide effective attenuation of common mode signals in low to medium power applications. The series offers standardized dimensions and electrical characteristics for consistent performance across various designs.

Replacement Considerations

Consult official Schaffner substitution guides or authorized distributors for verified equivalent parts. Do not assume cross-compatibility with other manufacturers' components without detailed parameter matching.
