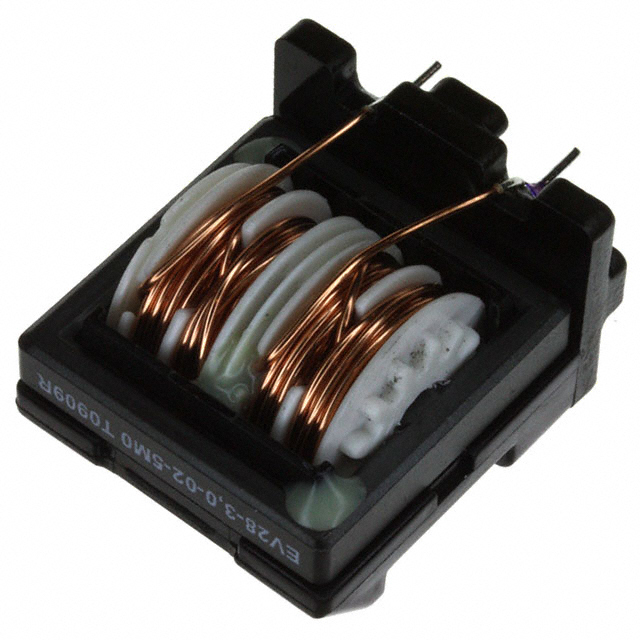

EV28-3.0-02-5M0

$2.62

Description：CMC 5MH 3A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:74a65b8ee5a4 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5MH 3A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：79mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)：1.406" (35.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5 mH @ 400 Hz

Download product information

EV28-3.0-02-5M0

Overview

The EV28-3.0-02-5M0 is a common mode choke manufactured by Schaffner EMC Inc., designed for through-hole mounting. It features an inductance of 5 mH with a tolerance of 30%. The component supports a maximum current rating of 3 A and exhibits a maximum DC resistance of 100 mOhms. Operating within a temperature range from -25 C to +100 C, it measures 29.2 mm in length, 21 mm in width, and 34.7 mm in height.

Feature Summary

Vertical common mode suppression design
Radial termination style for through-hole integration
Dual-line configuration for noise filtering

Applications

RFI suppression in electronic circuits
Power supply input filtering
EMI reduction in industrial equipment

Procurement Notes

Verify the manufacturer part number EV28-3.0-02-5M0 against official Schaffner documentation to confirm specifications. Ensure compatibility with through-hole assembly processes. Check for RoHS compliance status as indicated in product attributes. Confirm lead times and availability directly with authorized distributors or the manufacturer.

Selection Notes

Select this component when a 5 mH inductance at 3 A is required for common mode noise attenuation. Consider the vertical form factor and radial leads for PCB layout constraints. Evaluate thermal performance within the specified -25 C to +100 C operating range. Compare DC resistance requirements against circuit efficiency needs.

Part Context

This component belongs to the EV28 series of RFI suppression chokes from Schaffner EMC Inc. The series offers various inductance values and current ratings tailored for electromagnetic interference mitigation. The EV28-3.0-02-5M0 specifically addresses applications requiring moderate inductance with high current handling capabilities in a compact vertical package.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Alternative parts such as RN114-1.2-02 or RN222-1.5-02 exist for different models in the EV28 family but may not match the 5 mH/3A specifications. Verify electrical parameters and physical dimensions before substitution.
