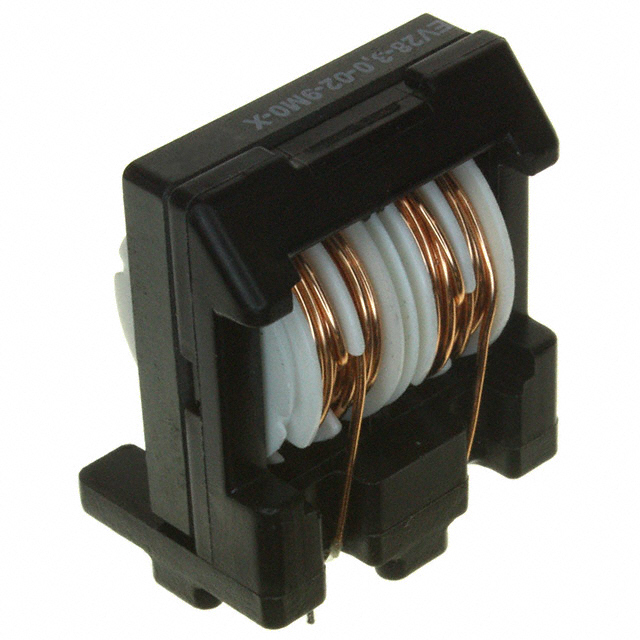

EV28-3.0-02-9M0-X

$3.38

Description：CMC 9MH 3A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:df4c2baddc2a Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 9MH 3A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：115mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)：1.406" (35.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：9 mH @ 400 Hz

Download product information

EV28-3.0-02-9M0-X

Overview

The EV28-3.0-02-9M0-X is a vertical common mode choke manufactured by Schaffner EMC Inc., designed for RFI suppression in electronic circuits. This component features an inductance of 9 mH with a tolerance of 30% and supports a maximum current rating of 3 A. It utilizes radial termination style for through-hole mounting. The device operates within a temperature range of -25°C to +100°C and exhibits a maximum DC resistance of 100 mOhms. Physical dimensions include a length of 29.2 mm, width of 21 mm, and height of 34.7 mm.

Feature Summary

Vertical common mode suppression design for effective noise filtering
Radial leaded construction suitable for through-hole PCB integration
High inductance value optimized for electromagnetic interference reduction

Applications

Power supply input filtering
EMI suppression in AC/DC converters
Noise reduction in industrial control systems

Procurement Notes

Verify the exact part number suffix against official Schaffner documentation to ensure correct inductance and current ratings. Confirm package orientation and pin compatibility during procurement. Request manufacturer datasheets for thermal derating curves and safety certifications prior to ordering.

Selection Notes

Select this component when high inductance is required for low-frequency noise attenuation in vertical mounting configurations. Ensure the 3 A current rating meets circuit load requirements. Verify that the 100 mOhm DC resistance aligns with efficiency targets. Check mechanical clearance constraints against the specified physical dimensions.

Part Context

This component belongs to the Schaffner EV28 series of common mode chokes. The series offers various inductance values and current ratings tailored for different EMI suppression needs. The EV28 series is characterized by its robust construction and suitability for general-purpose power line filtering applications across multiple industries.
