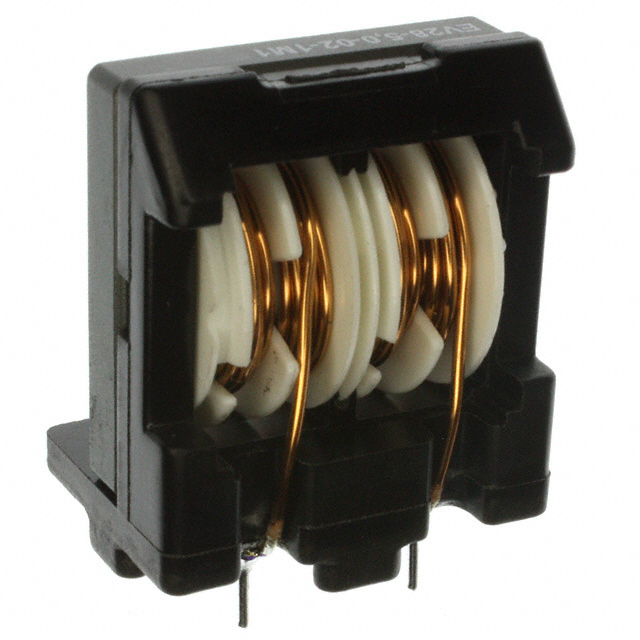

EV28-5.0-02-1M1

$3.33

Description：CMC 1.1MH 5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:508b7f8d7d56 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.1MH 5A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：27mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)：1.406" (35.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.1 mH @ 400 Hz

Download product information

EV28-5.0-02-1M1

Overview

The EV28-5.0-02-1M1 is a vertical common-mode suppression choke manufactured by Schaffner EMC Inc. It features an inductance of 5.0 mH and a current rating of 3 A. The component utilizes radial termination for through-hole mounting. Its physical dimensions are 29.2 mm in length, 21 mm in width, and 34.7 mm in height. The device operates within a temperature range of -25 °C to +100 °C and has a maximum DC resistance of 100 mOhms.

Feature Summary

Vertical common-mode noise suppression design
Radial leaded construction for PCB integration
High thermal stability up to 100 °C

Applications

AC power line noise filtering
Commercial equipment EMI suppression
Multimedia and audio equipment protection

Procurement Notes

Verify the specific inductance tolerance and current derating curves against the official datasheet before finalizing the design. Confirm that the radial pin spacing matches the target PCB footprint. Ensure the operating environment does not exceed the maximum rated temperature of 100 °C to maintain component longevity and performance reliability.

Selection Notes

Select this component when vertical mounting space is constrained but high inductance is required for common-mode noise reduction. The 3 A rating suits moderate power applications. Verify compatibility with the system's frequency spectrum and ensure the housing material meets local safety and flammability standards for the intended enclosure.

Part Context

This part belongs to the EV28 series of common-mode chokes from Schaffner. These components are engineered for general-purpose electromagnetic interference suppression in electronic devices. The series offers various inductance values to address different noise profiles while maintaining a compact form factor suitable for dense circuit board layouts.

Replacement Considerations

Cross-reference with other Schaffner EV28 variants if different inductance or current ratings are needed. Ensure any substitute maintains the same radial termination style and vertical orientation to fit existing mechanical constraints without redesigning the PCB layout.
