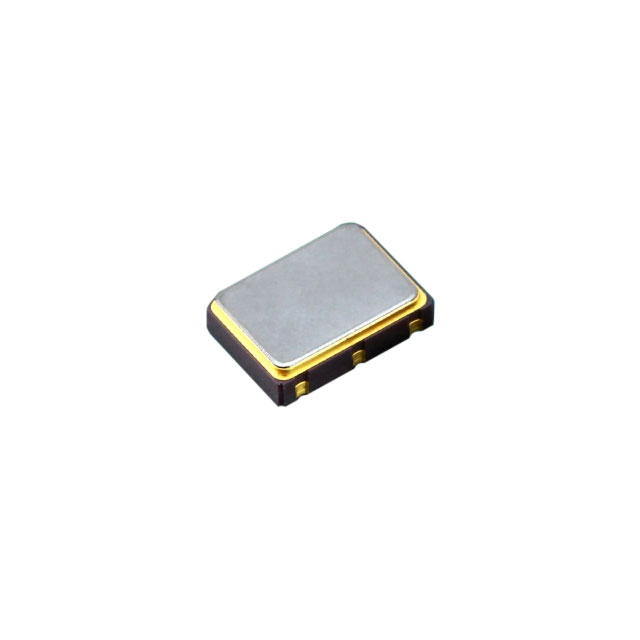

EV32C6A3A1-24.576M TR

Oscillators Overview

The EV32C6A3A1-24.576M TR is a voltage-controlled quartz crystal oscillator (VCXO) manufactured by Ecliptek / Abracon, operating at a nominal frequency of 24.576 MHz. It utilizes CMOS output logic and functions within a supply voltage range of 3.3 Vdc. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, No Lead surface-mount package. The operational temperature range extends from 0°C to +70°C, with a frequency stability tolerance of ±50 ppm across this range.

Oscillators Feature Summary

• Voltage-controlled quartz crystal design for precise frequency tuning
• Integrated enable and disable functionality for system power optimization
• CMOS output interface compatible with standard digital logic levels

Oscillators Applications

• Clock signal generation in communication systems requiring frequency agility
• Timing circuits in consumer electronics with variable clock requirements
• Embedded systems utilizing programmable clock sources

Oscillators Procurement Notes

Verify the specific suffix and tape/reel packaging details against the manufacturer's latest datasheet before procurement. Confirm that the enable/disable pin configuration matches the target circuit design. Ensure the 3.3V supply requirement aligns with the system power rails. Check for any RoHS compliance documentation if required by project specifications.

Oscillators Selection Notes

Select this component when a fixed-frequency quartz oscillator with voltage control capabilities is required. The 24.576 MHz frequency is suitable for audio and video sampling applications. The CMOS output simplifies interfacing with microcontrollers or FPGAs. Consider the ±50 ppm stability limit for timing-sensitive designs.

Oscillators Part Context

This part belongs to the EV32C6 series of voltage-controlled oscillators from Ecliptek. The series offers various frequency options and stability grades. The 24.576 MHz variant is commonly used in multimedia applications where precise clocking is essential. The SMD package facilitates automated assembly processes.

Oscillators Replacement Considerations

No direct public substitute part numbers are confirmed in the provided data. Evaluate other VCXOs from Ecliptek or Abracon with similar frequency and package dimensions if availability is an issue.
