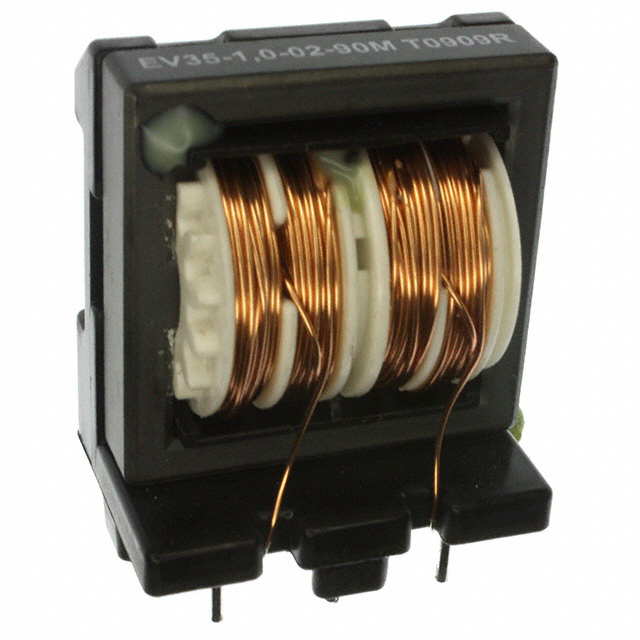

EV35-1.0-02-90M

$3.40

Description：CMC 90MH 1A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:01166b1856d3 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 90MH 1A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：628mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max)：1.681" (42.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：90 mH @ 400 Hz

Download product information

EV35-1.0-02-90M

Overview

The EV35-1.0-02-90M is a vertical common-mode inductor manufactured by Schaffner EMC Inc. It features an inductance of 90 mH and a rated current of 1 A. Designed for through-hole mounting, this component provides broadband attenuation with low magnetic leakage flux. It is suitable for applications requiring compact filtering solutions in power electronics.

Feature Summary

Vertical through-hole mounting configuration
Broadband attenuation performance
Low magnetic leakage flux design

Applications

Power supplies
Battery chargers
Portable devices
Energy-efficient systems

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct inductance and current ratings. Confirm package orientation and pin compatibility during integration. Check for RoHS compliance status if required by project specifications. Ensure thermal management aligns with the 1 A rated current limit.

Selection Notes

Select this component when vertical PCB space is constrained but high inductance is required. The 90 mH value suits noise suppression in low-current circuits. Compare with the EH35 series for potential form-factor alternatives. Ensure the 1 A rating meets the peak load requirements of the target application circuit.

Part Context

This part belongs to the EV35 series of common-mode chokes from Schaffner. The series offers various inductance values and current ratings in compact sizes. It is designed for EMI/RFI suppression in electronic equipment. The vertical style facilitates dense board layouts.

Replacement Considerations

The EH35-3.0-02-10M is listed as an alternative part number. Verify electrical parameters and physical dimensions before substitution. Cross-reference with manufacturer documentation for exact interchangeability.
